Technical Specifications
Product Code: SY-AMPC-17PN-M

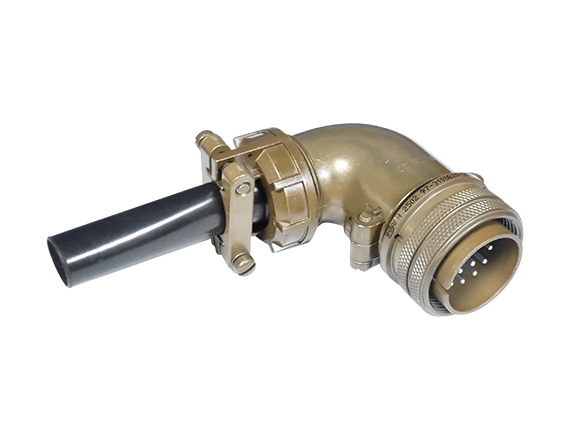

• Connector Type: 17-Pin Circular, Male, Right-Angle (Elbow)
• Shell Material: Hard-Anodized Aluminum or Marine-Grade Brass
• Contact Material: Machined Brass, Hard Gold Plated
• Insulator: High-Density Thermoplastic
• Orientation: 90° Elbow for Tight-Space Routing
• Voltage Rating: Up to 600 Volts DC
• Current Rating: Up to 3 Amps per Contact
• Ingress Protection: IP68 (when properly mated)
• Temperature Range: -40°C to +85°C
• Mating Interface: Compatible with 17-pin Amphenol-style receptacles
• Applications: Underwater Vehicles, Subsea Systems, Surveillance Equipment, Industrial Automation
