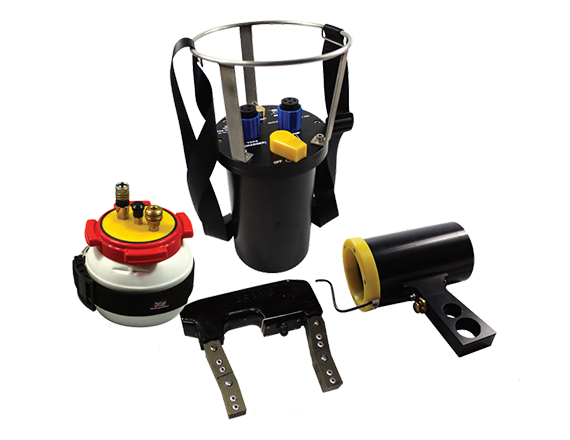

The System 12 subsea magnetic particle inspection (MPI) unit is a compact, battery-powered system, ideal for use in shallow water or splash zone applications. Based on the field-proven System 3 subsea MPI unit, this portable unit offers powerful performance from a very small package. Diver control for the UV lamp, magnetic yoke, and onboard power source means no umbilical connection to the surface is required. The system is supplied with a battery charger and purge pump for safe recharging of the power supply unit.
Technical Specifications
Product Code: SY-SYSTEM 12
• Ideal for shallow water. tidal and splash zone applications
• Up to 4 hours operation
• DC electromagnetic yoke
• Powerful UV lamp

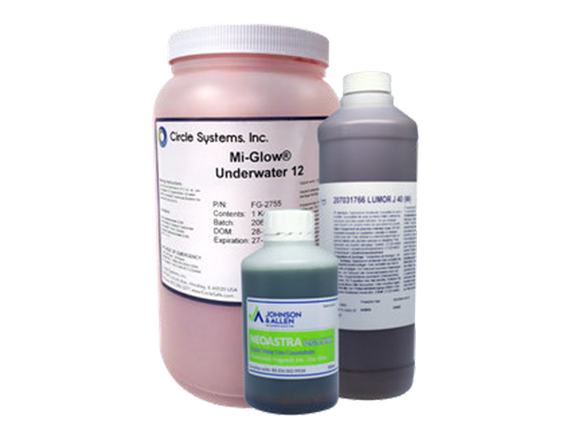

• Ink delivery options: air-powered, hand pump or surface feed
• Pressure tested to 600ft water depth
• Purge pump air delivery during charging – vents any charging gases
• Safe 12 V DC power source
• Available as a lamp-only unit for use with permanent magnets
