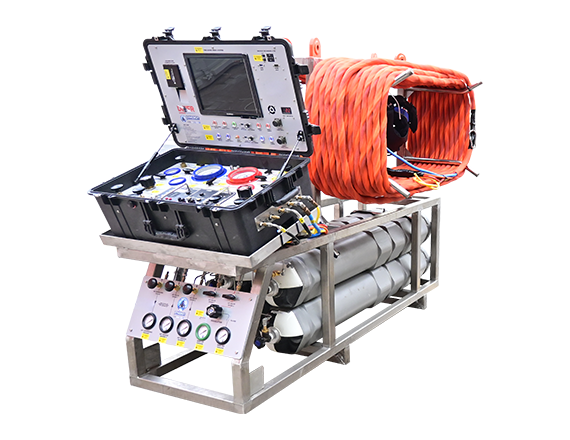

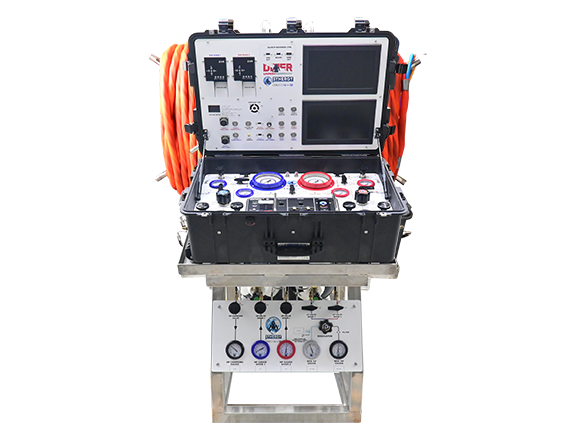

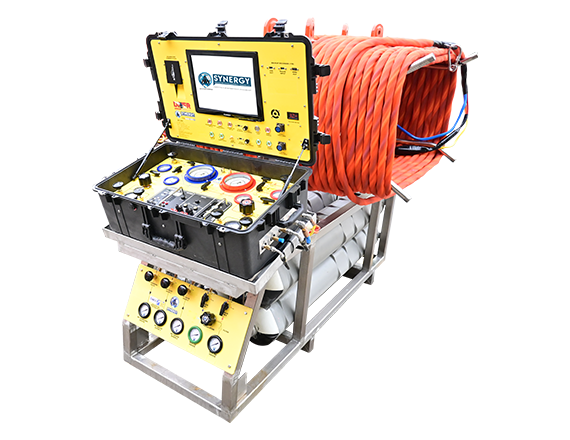

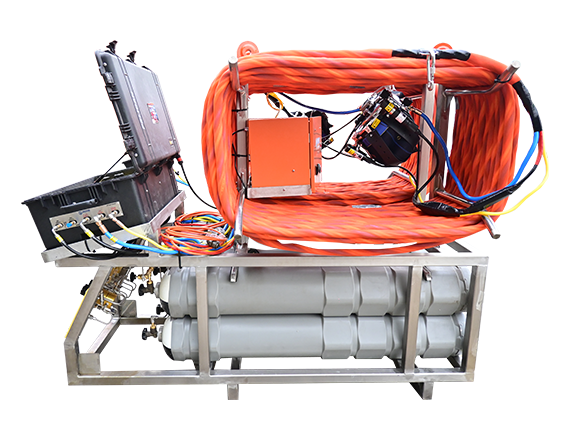

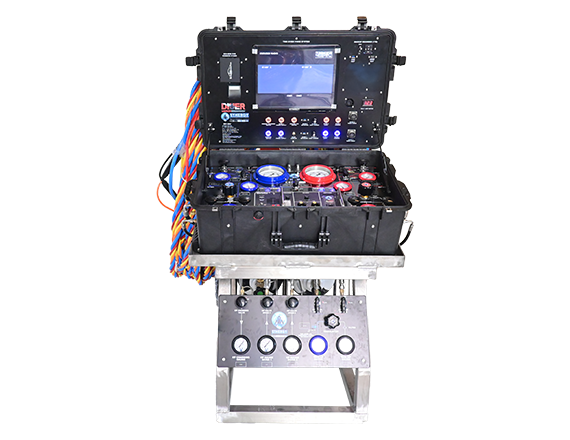

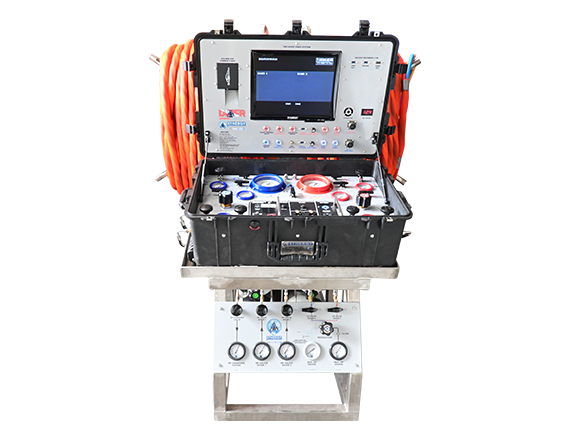

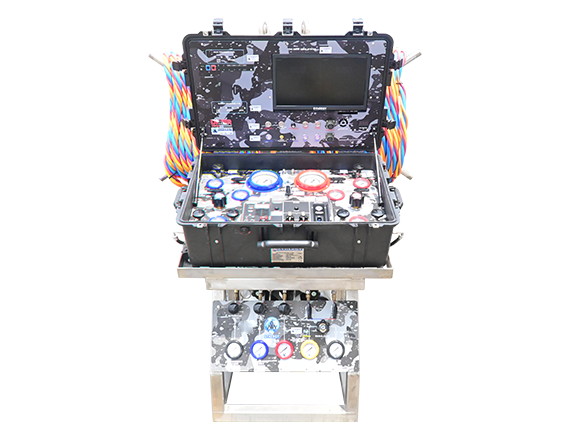

Synergy designed scuba replacement packages are one of the our popular products and have been very well received in the diving industry. Made out of a stainless steel frame, 4 x 50 ltr x 200 bar light weight carbon caomposite cylinders, all plumbed into an air management panel and the two diver panel for diver air supply and charging the cylinders. Our versatile two diver panel with amron two diver radio and 2 x outland cctv systems, 32GB primary hard drive recorder and 1TB secondary backup recorder, usb out to copy easily on any usb drive, hdmi out to show.mirror image on remote laptop or client room via hdmi cables, voltmeter/ampmeter , will run on 220v ac with 12v adaptor or 12v car battery, all built into one compact truly portable unit. Colored touch controls provide very good visibility during low light conditions, The entire system is built to Adci and Imca D040 standards with test witness certification by Bureau Veritas class
Technical Specifications
Product Code: SY-2D-D040CSRP-X-XXX
• Frame Construction: SS 316 stainless steel frame, corrosion resistant and heavy-duty design
• Cylinders: 4 × 50 Ltr × 200 Bar lightweight carbon composite breathing air cylinders
• Power Supply: Operates on 220V AC with 12V adaptor or 12V DC car battery
• Diver Air Supply: 2 breathing air supply lines provided per diver
• HP Supply: Independent HP1 & HP2 lines for each diver
• LP Supply: Common LP line per diver
• Diver Crossover: Cross-over connection between Diver 1 and Diver 2
• Communication: Amron two diver communication radio system
• CCTV Monitoring: Surface video and lighting control unit for diver monitoring
• Recording System: 32GB primary recorder and 1TB backup hard drive for diver video recording
• Controls: Colored backlit touch buttons for improved visibility in low light conditions
• Display: 15.5” TFT waterproof monitor with remote control
• Outputs: USB output and HDMI output for recording transfer and external display
• Monitoring: Built-in voltmeter and ammeter for incoming power supply indication
• Accessories: Wireless keyboard and mouse included
• Air Management: Integrated air management panel connecting cylinders to diver panel with charging points
• Handling: DNV type lifting eyes for crane lifting and forklift slots for ground transport
• Compliance: Built to ADCI and IMCA D040 & D018 standards
• Optional: FMEA for complete system reliability analysis
• Certification: Bureau Veritas Class Witness Testing Certification for the entire system
