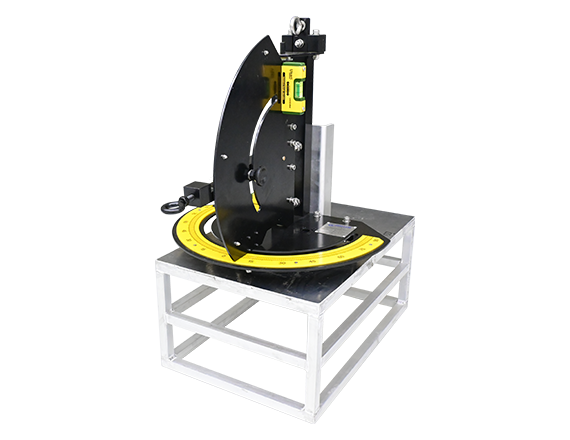

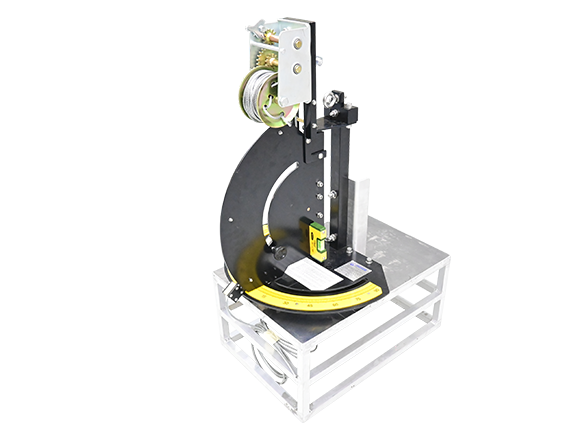

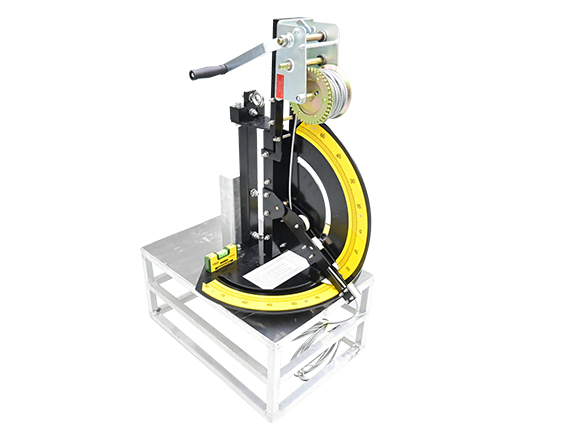

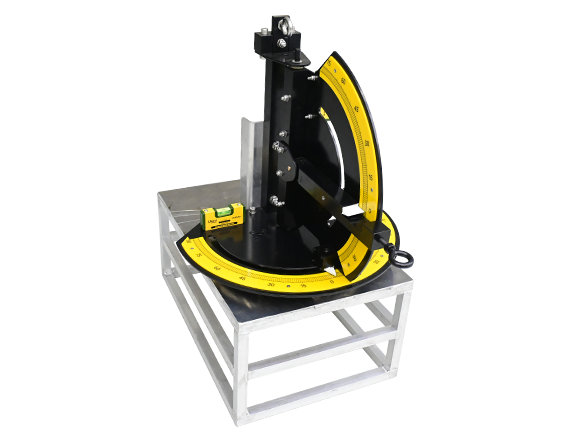

The Synergy Metrological Jig Set is a high-precision subsea measurement tool designed to support offshore pipeline and structural installations. This advanced system enables engineers and subsea teams to accurately determine the required spool length, angle, and alignment path for connecting critical pipeline segments. Featuring a master and slave unit, the Synergy jig set utilizes a taut wire mechanism combined with opposing protractors to measure deviation and elevation between two flange faces. This precision measurement is essential for ensuring system integrity, reducing installation errors, and minimizing the need for rework.
Technical Specifications
Product Code: SIDET-MJ-001 & SIDET-MJ-002
• Material: Powder-coated aluminium, grade 1100
• Weight: 14 kilograms each unit (approx}
• Dimensions: 500mm X 500mm (approx}
• Horizontal Protector: 90° - 0° - 90°
• Vertical Protector: 75° - 0° - 30°
• Horizontal & Vertical: 4" spirit level indicator
• Mounting Frame: Aluminium, grade 1100
