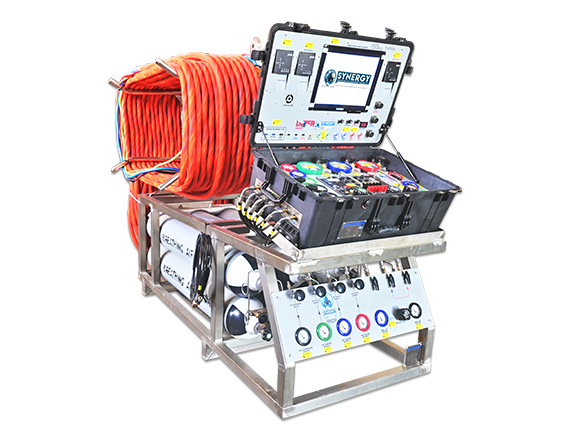

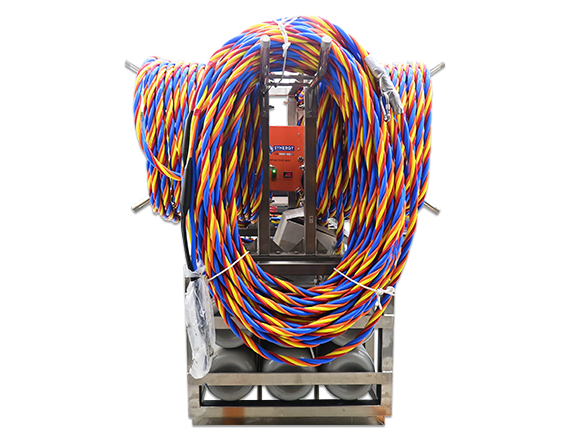

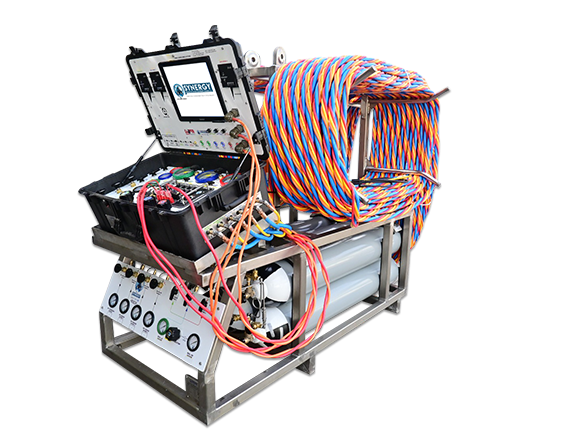

Synergy designed scuba replacement packages are one of the most popular products and have been very well received in the diving industry. Made out of a stainless steel frame, 6 x cylinders, all plumbed into an air management panel, and then plumbed into the tthree diver panel for diver air supply and charging the cylinders. Our versatile three diver panel with amron three diver radio and 2 x outland cctv systems, 2 x mini dvrs with 32 gb sd cards and 1 TB backup recorder, usb out to copy easily on any usd drive, hdmi out to show.mirror image on remote laptop or client room via hdmi cables, voltmeter/ampmeter , will run on 220v ac or 12v car battery, all built into one compact truly portable unit. Colored touch controls provide very good visibility during low light contidions. The entire system is built to Adci and ImcaD040 standards with test witness certification by Bureau Veritas class
Technical Specifications
Product Code: SY-3DAP-D040-SC-SRP-X-XXX
• Frame Construction: SS 316 stainless steel, rust-proof and robust construction
• Lifting & Handling: Four DNV-type ringed lifting eyes and integrated forklift pockets for safe transportation
• Breathing Air Storage: Six 50 L × 200 bar steel breathing air cylinders (3/3 configuration)
• Power Supply: Operates on 220V AC or 12V DC (standard car battery)
• Diver Supply Lines: Two breathing air supply lines per diver
• HP Supply: Independent HP1 line for each diver
• LP Supply: Common LP line per diver
• Crossover System: Integrated crossover between Diver 1, Diver 2, and Diver 3
• Communication: Amron three-diver communication system
• Video Control Unit: Surface video and light control unit available for single or multiple diver configurations
• Video Overlay: Integrated time, date, and data overlay capability
• Panel Connections: Inlet and outlet fittings configurable on side panels or rear panel
• Primary Recording: Individual Mini DVR with 32 GB SD card for each diver
• Secondary Recording: 1 TB hard drive for backup recording of all dives
• Outputs: USB output and HDMI output provided
• Power Monitoring: Integrated voltmeter and ammeter for incoming power indication
• Monitor: 15.5" waterproof TFT monitor with remote control
• Accessories: Wireless keyboard and mouse included
• Compliance: IMCA D040 and D018 compliant certification package supplied
• Risk Assessment: FMEA provided for the complete system
• Third-Party Certification: Bureau Veritas class witness testing certification for the complete system
