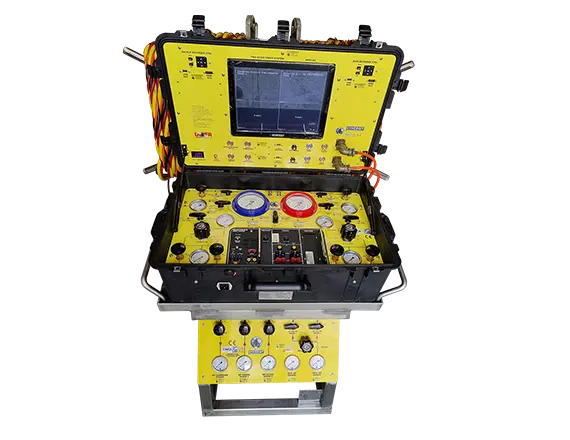

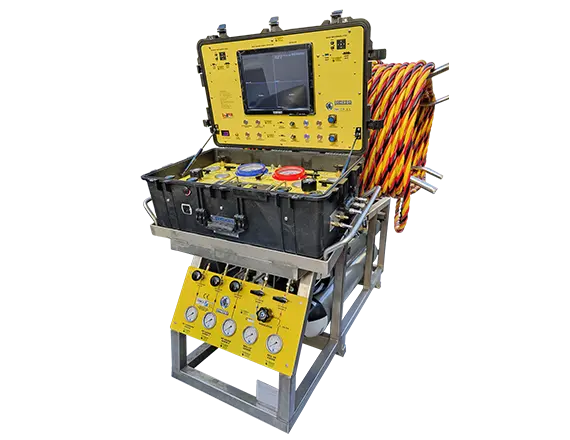

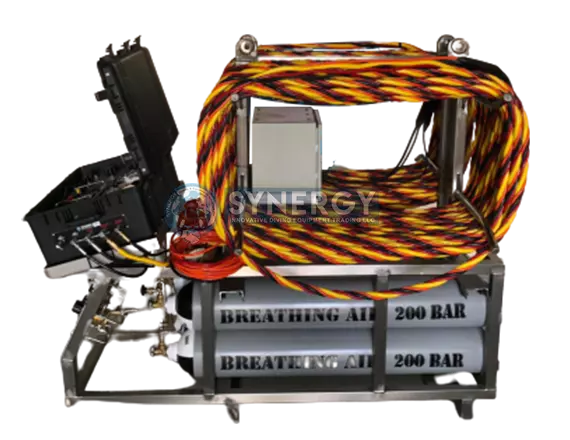

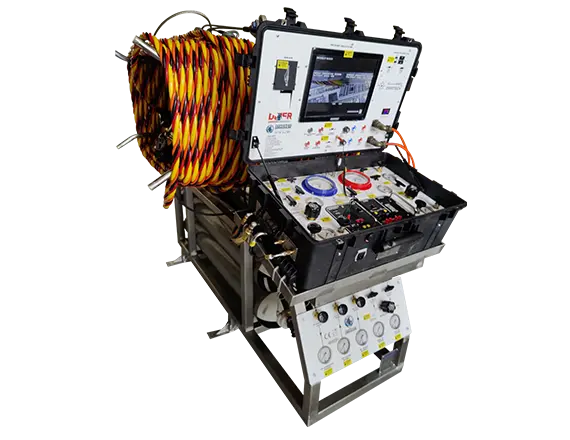

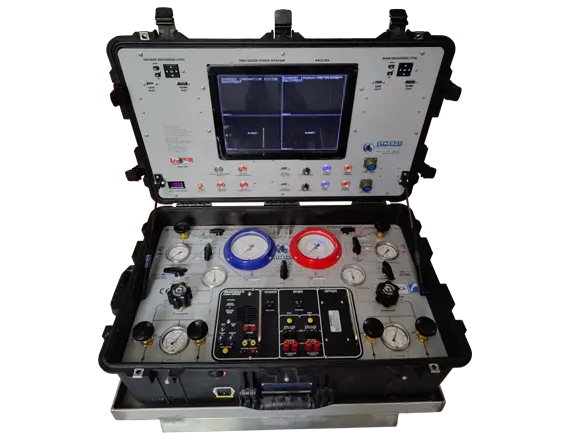

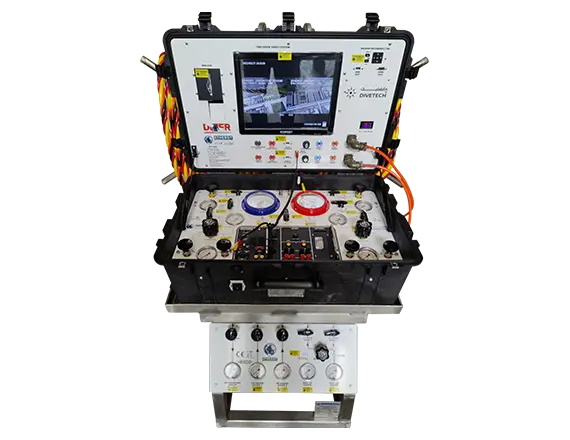

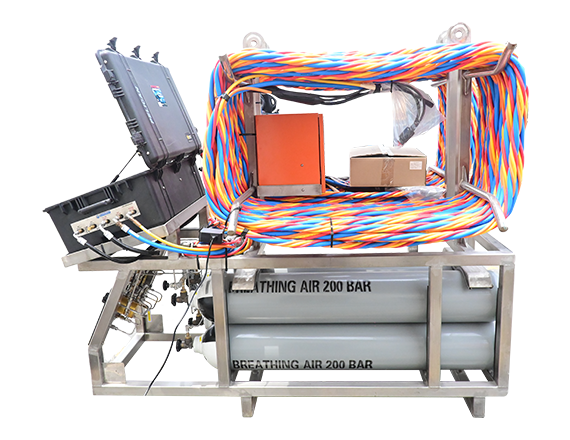

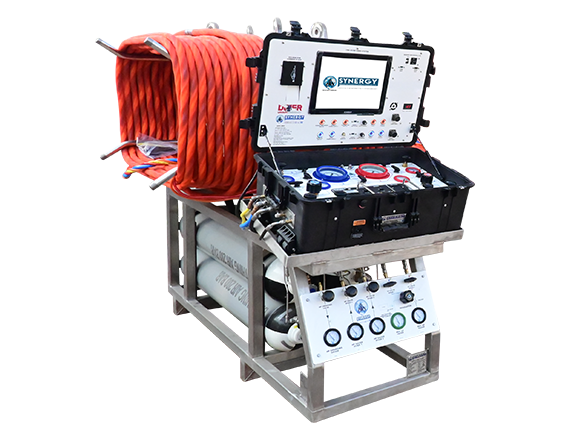

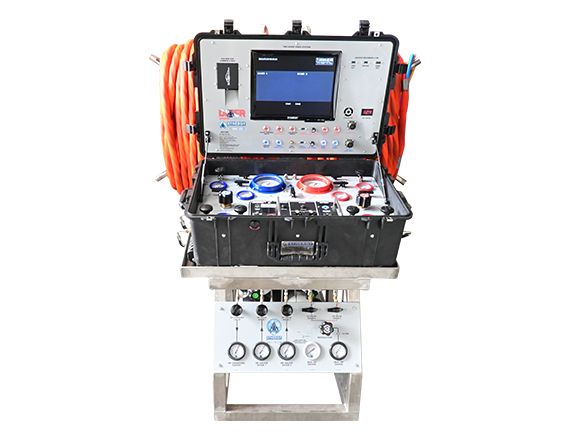

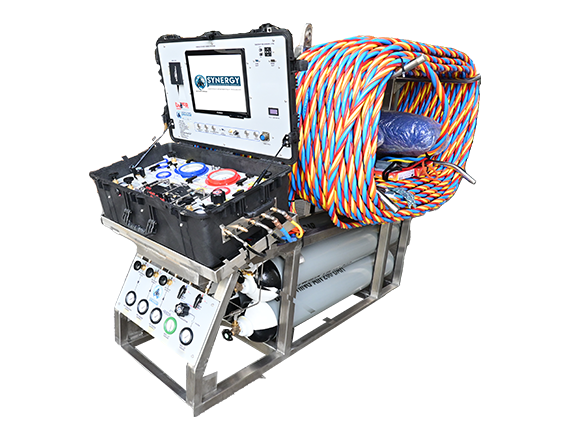

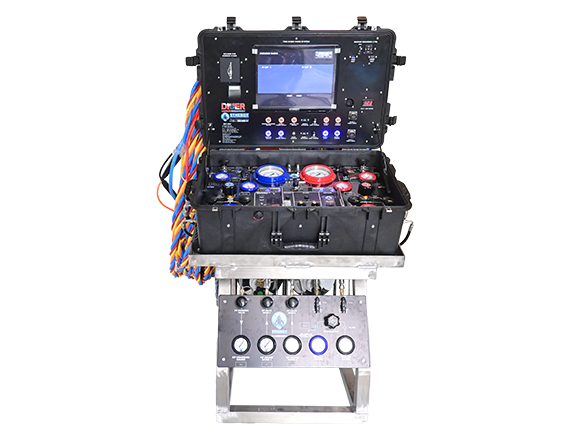

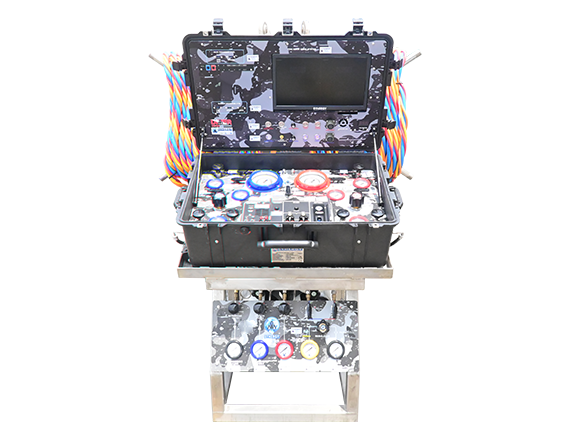

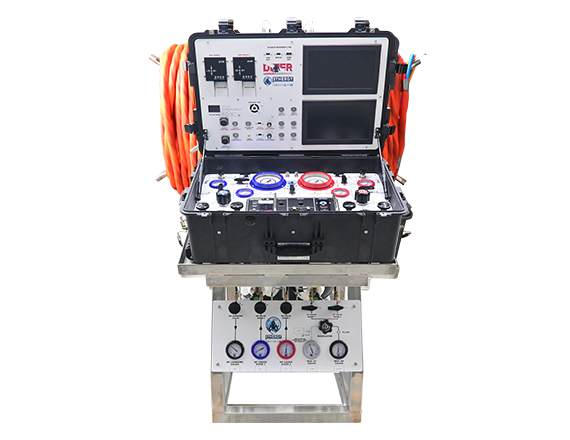

Synergy designed scuba replacement packages are one of the most popular products and have been very well received in the diving industry. Made out of a stainless steel frame, 4 x cylinders, all plumbed into an air management panel, and then plumbed into the two diver panel for diver air supply and charging the cylinders. Our versatile two diver panel with amron two diver radio and 2 x outland cctv systems, 2 x mini dvrs with 32GB sd cards and 1TB backup recorder, usb out to copy easily on any usb drive, hdmi out to show.mirror image on remote laptop or client room via hdmi cables, voltmeter/ampmeter , will run on 220v ac or 12v car battery, all built into one compact truly portable unit. Colored touch controls provide very good visibility during low light conditions, The entire system is built to Adci and Imca D040 standards with test witness certification by Bureau Veritas class
Technical Specifications
Product Code: SY-2DAP-D040-SC-SRP-X-XXX
• Frame: SS 316 stainless steel, rust-proof and robust construction
• Lifting & Transport: 4 x DNV ringed lifting eyes, fork lift slots
• Cylinders: 4 x 50L, 200 Bar Steel Breathing Air Cylinders
• Power Supply: 220V AC or 12V DC (car battery)
• Diver Supply: 2 breathing air lines per diver, independent HP1 & HP2, common LP per diver
• Diver Crossover: Connection provided between Diver 1 and Diver 2
• Communications: Amron Two Diver Radio
• Video/Light Control: Surface control unit (1 diver or 2 diver option)
• Overlay: Video time/date/data overlay unit
• Inlet/Outlet Fittings: Side-mounted or rear-mounted options
• Recording: Mini DVR 32GB per diver + 1TB backup hard drive
• Outputs: USB out and HDMI out
• Monitoring: 15.5” TFT waterproof monitor with remote, voltmeter/ampmeter, wireless keyboard & mouse
• Air Management: Built-in front air management panel connecting cylinders to dive panel, includes charging points
• Compliance: IMCA D040 & D018, ADCI standards
• Optional: FMEA for complete system
• Certification: Bureau Veritas Class Witness Testing Certification
