Technical Specifications
Product Code: SY-DIVER-VISION-3D

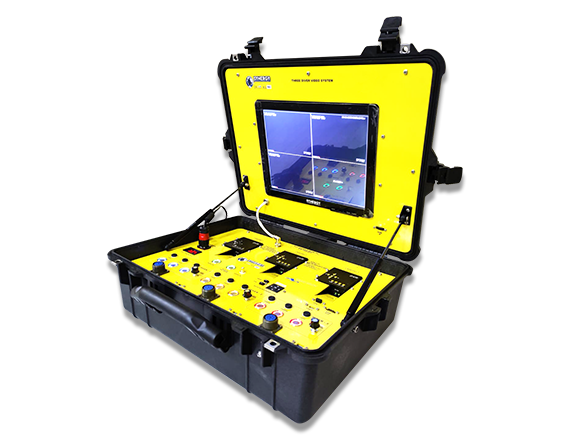

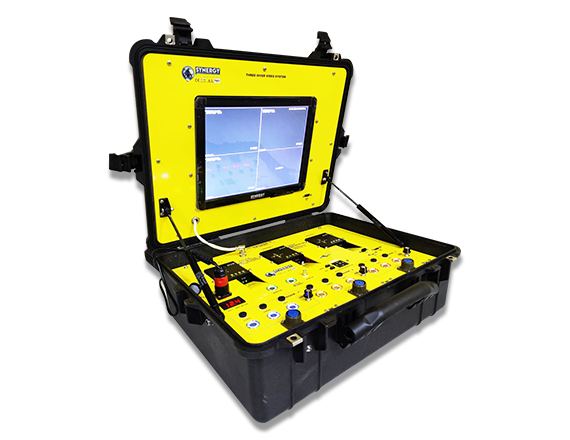

• Model: SY-DIVER-VISION-3D Portable Three Diver Video System
• Built-in Case: Pelican 1600 case, IP67 rated, watertight and dustproof
• Dimensions (Interior): 54.4 x 41.9 x 20.1 cm
• Dimensions (Exterior): 61.7 x 49.3 x 22.1 cm
• Colors: Orange, Yellow, Grey, Black

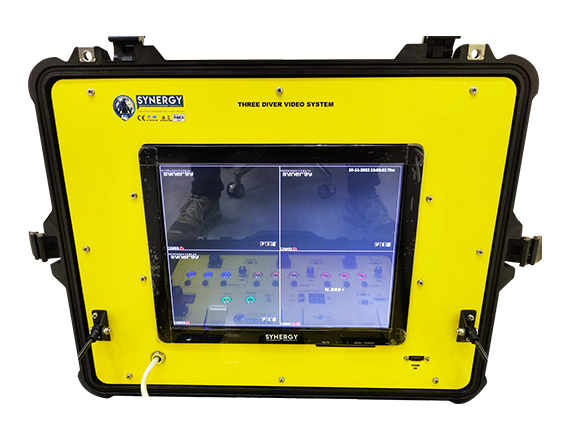

• Monitor: 15" TFT monitor with 4-screen splitter
• Primary Recording (Per Diver): Mini DVR with 32 GB SD card (upgradeable to 128 GB)
• Secondary Recording: 1 TB backup hard drive for all diver video files

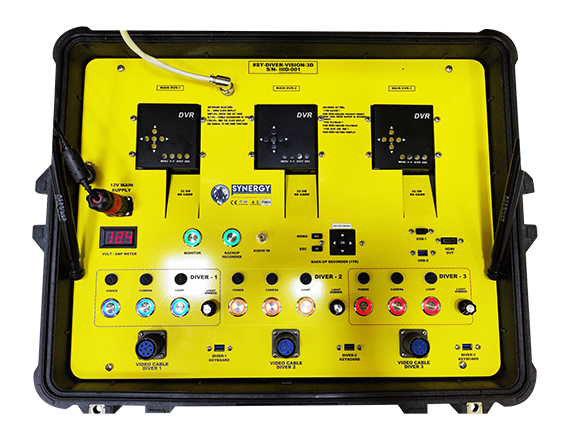

• Surface Control Unit: Integrated video, light controls, and video titler
• AC Power: 220V AC to 12V adapter supplied
• DC Power: 12V battery connection with leads
• Current/Amps Reading: Digital voltage and ammeter display
• Keyboard: Waterproof USB keyboard
• Mouse: Wireless mouse
• Protection: Plexiglass monitor cover
• USB Output: USB port for video file transfer
• HDMI Output: HDMI output for remote display
• On/Off: Main power switch
• Maximum Weight: 30 kg
• Warranty: 1-year international manufacturer warranty
• Certifications: Certification package supplied
• International Standard: IMCA D023 & D018 compliant
• Manufacturer Certificates: Synergy certificates provided
• Electrical Testing: Continuity and function tested
