Synergy’s Dual Basket Launch and Recovery System has been specifically designed to give a compact operating footprint to minimise the deck space required on board a vessel or barge. We have given great emphasis for ease of mobilization and demobilisation, so that these costs are kept to a minimum. The lars folds down in order that it fits into a standard ISO 20 ft shipping container, thus expensive shipping costs for out of gauge size goods are avoided. This also allows for safe storage and protection of the LARS from the elements, during periods when the equipment is not required operationally.The main components of the system are the base skid,A Frame, Primary Dive Basket (Two diver) with clump weight, Secondary Dive Basket (Standby diver) with clump weight, 4 x man riding winches and Electric Hydraulic Powerpack with Triple Motors and Pumps
Technical Specifications
Product Code: SY-ATLAS-3D-D023-LARS
• Base Frame: 1 x Skid with Galvanized Steel Grated Flooring for Efficient Water Drainage
• A-Frame: 1 x Heavy-Duty Frame Launched and Recovered via Two Hydraulic Rams
• Primary Diver Basket: 1 x Two-Diver Basket Fabricated from Stainless Steel 316
• Standby Diver Basket: 1 x Single-Diver Basket Fabricated from Stainless Steel 316
• Breathing Air Cylinders: 3 x 50 Ltr, 200 Bar Cylinders with First Stage Regulator and Whip (One per Diver)

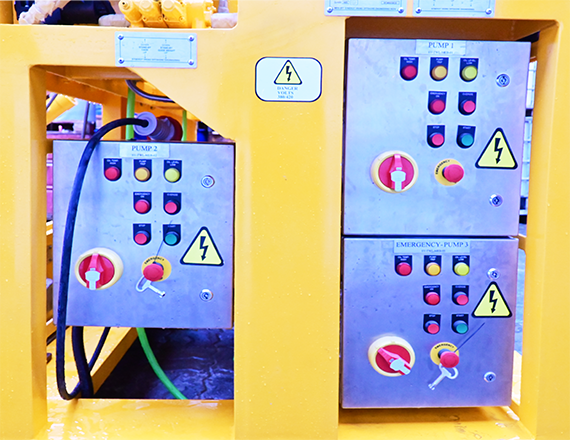

• Hydraulic Power Pack: 1 x Primary Electric Hydraulic Power Pack with Triple Motors and Pumps
• Oil Reservoir: 1 x 270 Ltr Capacity Split Tank (100 Ltrs + 170 Ltrs Partition)
• Clump Weights: Independent Clump Weights Provided for Each Basket

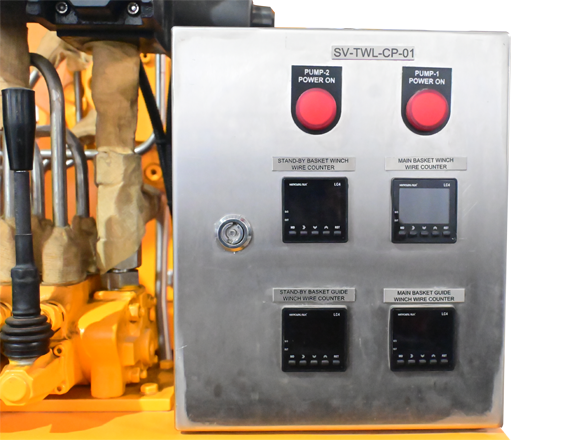

• Winches: Man-Riding Rated Winches with Certified Load Testing
• Wire Ropes: Certified Wire Ropes Specifically for Man-Riding Winches
• Compliance: IMCA D023 & D018 Compliant Certification
• Documentation: FMEA Report for Twin LARS (Optional)
• Testing Certification: Bureau Veritas Class Witness Testing for Twin LARS
