Technical Specifications
Product Code: SY-MO2

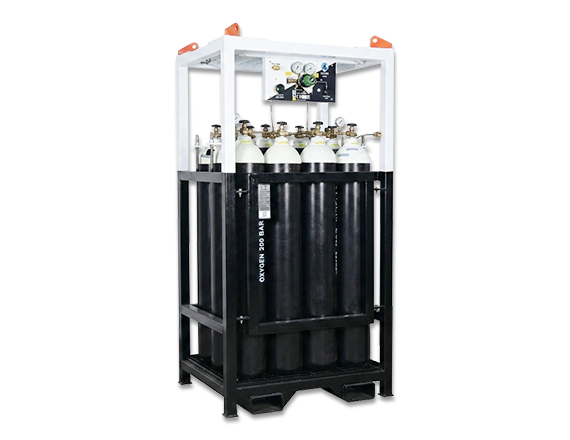

• Cylinder Type: Medical oxygen cylinder quad
• Frame Material: Mild steel
• Finish: Spray painted and colour coded for oxygen
• 12-Cylinder Quad Dimensions: 1045mm (W) x 815mm (L) x 2100mm (H)
• 16-Cylinder Quad Dimensions: 1045mm (W) x 1045mm (L) x 2100mm (H)
• Frame: Mesh steel frame with forklift slots
• Tubing: Tungum tubing with high-pressure brass fittings
• Sealing: Oxygen-approved PTFE tape
• 12-Cylinder Configuration: 6/6 with isolation valves
• 16-Cylinder Configuration: 8/8 with isolation valves
• Charging Point: Charging point with check valve
• Identification: Cylinder serial number, hydro test date, rack serial number, and load test details
• 12-Cylinder Quad Weight: 1000 kg (Tare: 200 kg / Payload: 800 kg)
• 16-Cylinder Quad Weight: 1400 kg (Tare: 200 kg / Payload: 1200 kg)
• Certification: IMCA D050,D043, D023 & D018 Compliant Certification Package
• FMEA: Provided for complete system (Optional)
• Class Witness Testing: Bureau Veritas Class Witness Testing Certification
• Documentation: Cylinder hydrotest certificates
