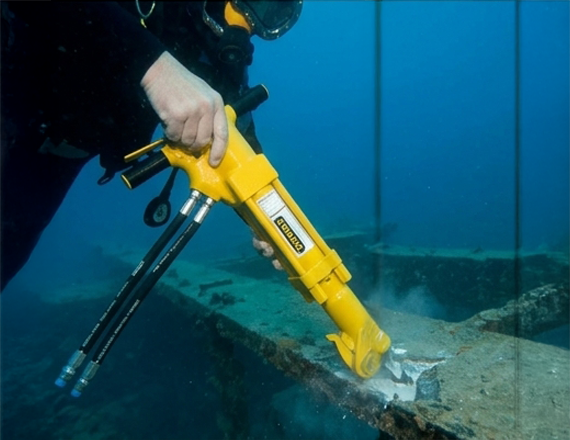

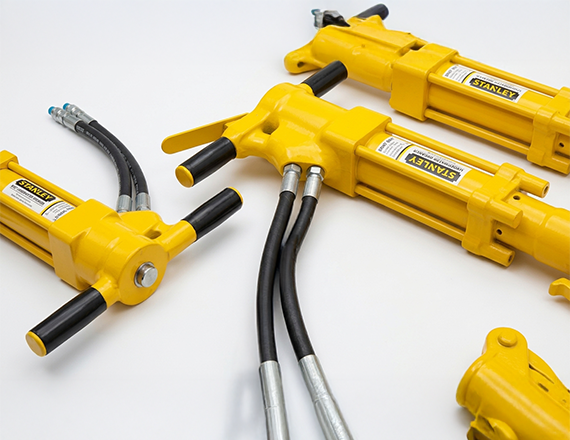

The Stanley BR67 Underwater Breaker is a heavy-duty hydraulic breaker designed for medium to heavy-duty breaking of concrete and rock in demanding underwater applications. It is also suitable for tamping, rod driving, coral and barnacle removal, and anchor driving. The BR67 features a T-handle with a large feathering on/off trigger for precise control, making start-up and initial tool bit placement easier. Its diaphragm accumulator provides additional blow energy and reduces recoil, while the rugged four tie-rod construction provides durability for demanding commercial diving, marine and offshore applications. The BR67 can operate in any position and is designed to handle high back pressure associated with the long hydraulic hoses commonly used in underwater operations.
Technical Specifications
Product Code: SY-BR67
• Performance: 1,300 bpm @ 30 LPM
• Hydraulic Flow Range: 26-34 LPM
• Optimum Flow: 30 LPM
• Working Pressure: 105-140 bar
• Weight: 51 kg
• Power Type: Hydraulic
• Hydraulic Ports: -8 SAE O-Ring
• Couplings: Yes
• Handle: T-Handle with large on/off trigger for precise control
• Accumulator: Diaphragm accumulator provides additional blow energy and reduces recoil
• Valve: Feathering on/off valve for easy initial tool bit placement
• Construction: Four tie-rod design for durability
• Operation: Operates in any position
• Maintenance: Modular design for ease of service
• Fasteners: Stainless steel spool and fasteners
• Retainer: Latch retainer
• Applications: Concrete and rock breaking, coral and barnacle removal, tamping, rod driving and anchor driving
