Technical Specifications
Product Code: SY-AMPC-17PN-M

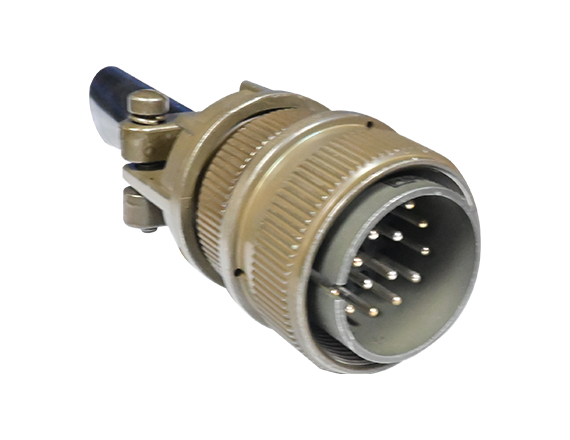

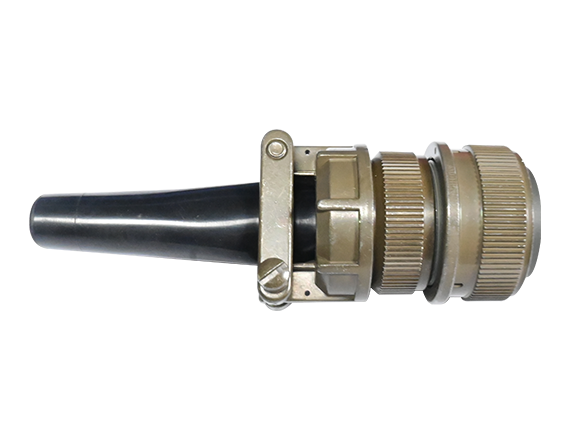

• Connector Type: 17-Pin Circular, Male, Straight
• Orientation: In-line / Straight
• Shell Material: Hard-Anodized Aluminum or Marine Grade Brass
• Shell Finish: Corrosion-Resistant Coating (typically anodized or nickel-plated)
• Contact Material: Precision-Machined Brass, Hard Gold-Plated
• Insulator: High-Density Thermoplastic
• Coupling Mechanism: Threaded (Amphenol-style)
• Voltage Rating: Up to 600 Volts DC
• Current Rating: Up to 3 Amps per Contact
• Ingress Protection: IP68 (when properly mated with sealed counterpart)
• Operating Temperature: -40°C to +85°C
• Mating Interface: Compatible with 17-pin Amphenol-style female receptacles
• Applications: Subsea Systems, ROVs, Surveillance Equipment, Aerospace Interfaces, Harsh Industrial Controls
