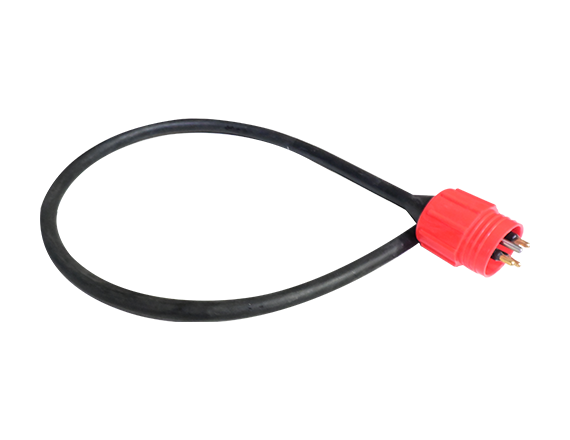

3-Pin Male Wet-Mateable Camera Connector (Inline)

Technical Specifications

Product Code: SY-SC-3P-M

• Series: SubConn® IL Series
• Model: IL3M (or MCIL3M for bulkhead-style)
• Connector Type: Inline Circular Connector, Male (Pin Contacts)
• Number of Contacts: 3 Electrical Contacts
• Mating Interface: 4-pin circular layout (1 dummy/keying hole)
• Gender: Male
• Contact Material: Brass, Gold-Plated
• Body Material: Polyurethane (Black)
• Cable Termination: Pigtail or Overmolded Cable (as required)
• Compatible Mates: IL3F / MCIL3F (female connectors)
• Operating Depth: 600 meters standard (custom deeper ratings)
• Voltage Rating: Up to 300 V DC
• Current Rating: Up to 5 A per contact
• Ingress Protection: IP68 / Fully Submersible / Wet-Mateable
• Operating Temp.: -20°C to +60°C
• Applications: Underwater Lights, Sensors, Cameras, Marine Robotics
