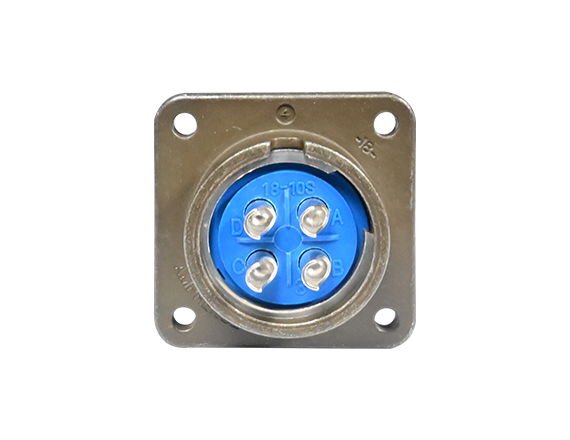

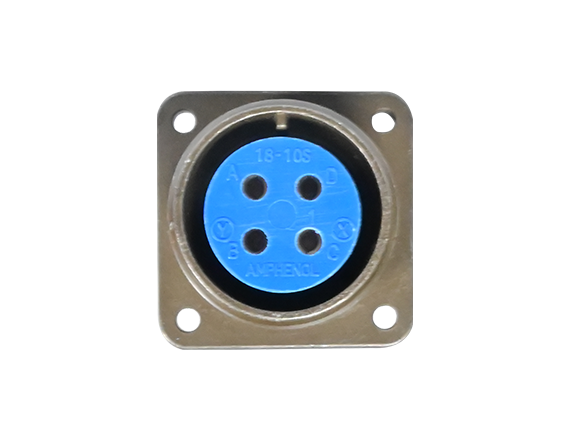

Technical Specifications
Product Code: SY-AMPC-4PN-F
• Manufacturer: Amphenol
• Series: 97
• Part Number: 18S-10S
• Connector Type: Circular Connector – Socket (Female)
• Mounting Style: Panel Mount with Flange (4-hole)
• Shell Size: 18S
• Insert Arrangement: 10S
• Termination Style: Solder Cups
• Contact Type: Female
• Contact Plating: Silver-Plated
• Contact Size: 16
• Shell Material: Aluminum Alloy
• Shell Plating: Cadmium, Olive Drab
• Locking Mechanism: Threaded Coupling (External Thread)
• Orientation: Straight
• Rated Voltage: 500V AC / 700V DC
• Rated Current: Up to 13A
• Operating Temperature Range: -55°C to +125°C
• Wire Size Supported: 0.5 – 1.5 mm²
• Protection Class: When mated – IP67 (depending on backshell and sealing options)
• Applications: Military & Aerospace Systems, Industrial Control Panels, Robotics, Ground Vehicles, Power Distribution Modules
