Technical Specifications

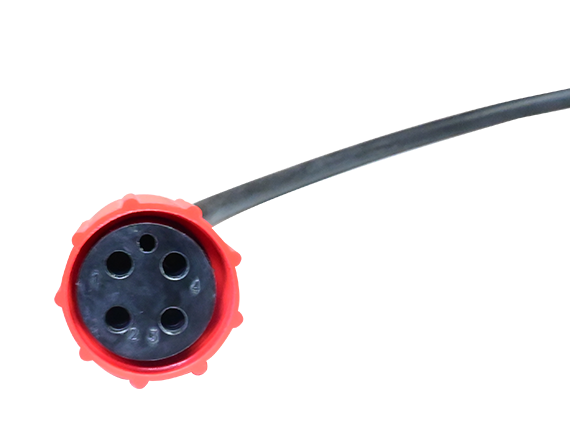

Product Code: SY-SC-4P-F
• Series: SubConn® IL Series
• Model: IL-4F
• Connector Type: Inline Female (Socket)
• Number of Contacts: 4
• Gender: Female (Socket Contacts)
• Contact Material: Brass, Gold-Plated
• Body Material: Polyurethane (Black)
• Cable Termination: Overmolded / Pigtail
• Mating Interface: Mates with SubConn IL-4M or compatible 4-pin male connectors
• Contact Configuration: Standard 4-contact shell, 4 used (1 guide)
• Operating Depth: Up to 600 meters (standard); deeper on request
• Operating Voltage: Typically 300 V DC (depends on configuration)
• Current Rating: Up to 5 A per contact
• Ingress Protection: Wet-mateable / fully submersible
• Temperature Range: -20°C to +60°C (typical underwater rating)
• Applications: Subsea Cameras, ROVs, AUVs, Oceanographic Instruments, Marine Sensors
