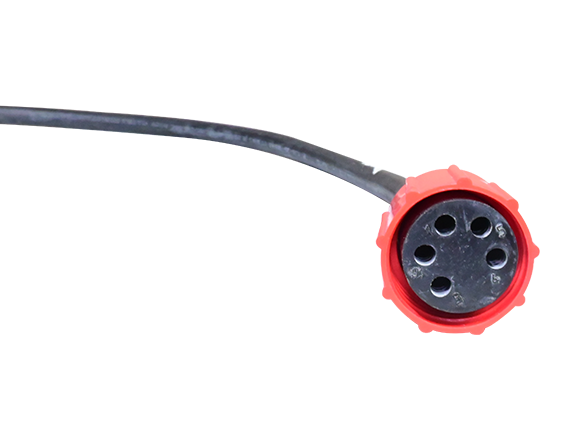

5-Pin Female Wet-Mateable Camera Connector (Inline)

Technical Specifications

Product Code: SY-SC-5P-F

• Series: SubConn® IL Series
• Model: IL5F (or MCIL5F for bulkhead-style)
• Connector Type: Inline Circular Connector, Female (Socket Contacts)
• Number of Contacts: 5
• Gender: Female
• Contact Material: Brass, Gold-Plated
• Body Material: Polyurethane (Black)
• Cable Termination: Pigtail or Overmolded Cable (length per application)
• Mating Interface: Compatible with IL5M / MCIL5M (male connectors)
• Operating Depth: 600 meters standard (deeper ratings available)
• Voltage Rating: Up to 300 V DC
• Current Rating: Up to 5 A per contact
• Ingress Protection: IP68 / Fully Submersible / Wet-Mateable
• Operating Temp.: -20°C to +60°C
• Contact Layout: Circular 5-socket configuration
• Applications: Subsea Cameras, Diver Comms, Sensors, Lighting, AUVs
