Technical Specifications

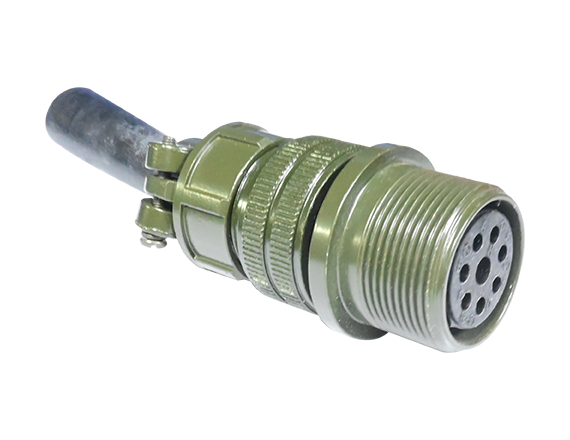

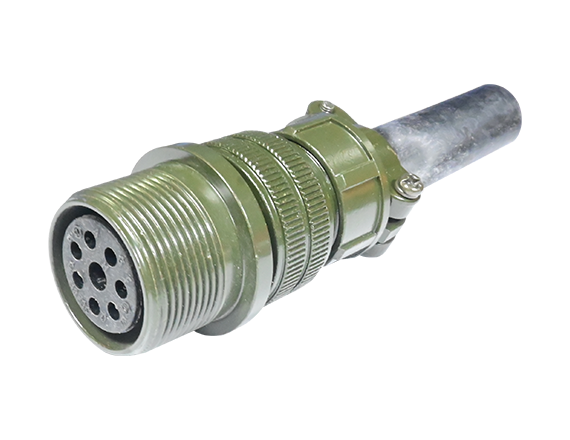

Product Code: SY-AMPC-8PN-F
• Connector Type: 8-Pin Circular, Female, Straight
• Orientation: In-line / Straight
• Gender: Female (Socket Contacts)
• Shell Material: Hard-Anodized Aluminum or Marine-Grade Brass
• Shell Finish: Corrosion-Resistant Coating (Anodized or Nickel-Plated)
• Contact Material: Precision-Machined Brass, Gold-Plated
• Insulator: High-Density Thermoplastic
• Coupling Mechanism: Threaded (Amphenol-style)
• Voltage Rating: Up to 600 Volts DC
• Current Rating: Up to 5 Amps per Contact
• Ingress Protection: IP68 (when properly mated with a sealed plug)
• Operating Temperature: -40°C to +85°C
• Mating Interface: Compatible with 8-pin Amphenol-style male plugs
• Applications: Marine Control Panels, ROV Systems, Aerospace Interfaces, Signal Transfer, Industrial Automation
