Technical Specifications
Product Code: SY-ABS-SSDDC-XXX
• Chamber Type: ABS-Classed Diving Decompression Chamber
• Chamber Size & Rating: 60” DDC Chamber rated to 100 MSW

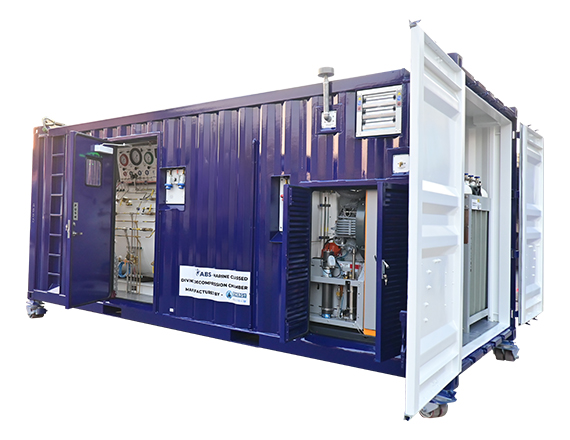

• Classification: ABS Class Certified, Installed in DNV 2.7-1 Offshore Container
• Cylinder: 24 × 200 bar (50 Ltr) breathing air cylinders
• Gauge & Line Coding: All Pneumo Gauges, Pressure Gauges, Valve Handles, and Air Flow Lines Color-Coded

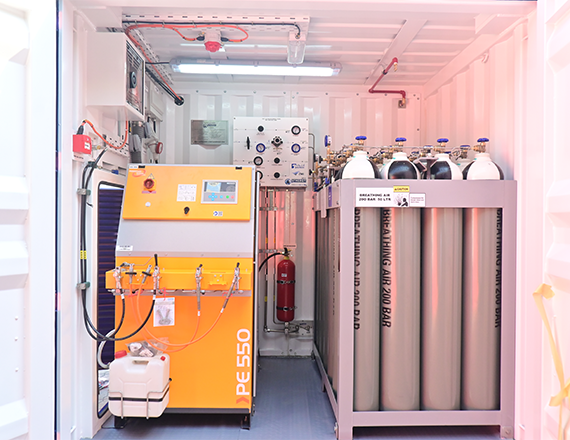

• High Pressure Compressor: BAUER PE550VE high-pressure breathing air compressor
• Monitoring: Oxygen and CO2 analyser present for each lock
• Data Recording: Black Box Backup Recorders
• Fire Safety: Fire Alarm System Connected to Ship Bridge, Fire Sprinkler System & Alarm Panel as per ABS Requirements
• Built to: ASME PVHO-1, ASME Sec. VIII Div. 1 & IMCA D023
