Technical Specifications
Product Code: SY-ABS-DDC-XXX
• Chamber Type: ABS-Classed Diving Decompression Chamber
• Chamber Size & Rating: 60” DDC Chamber rated to 100 MSW
• Classification: ABS Class Certified, Installed in DNV 2.7-1 Offshore Container

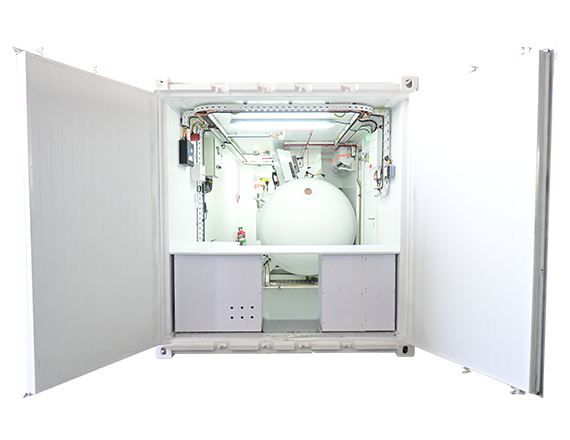

• Diving Chamber: Installed in a 20FT DNV Offshore Container with complete internal and external fit-out

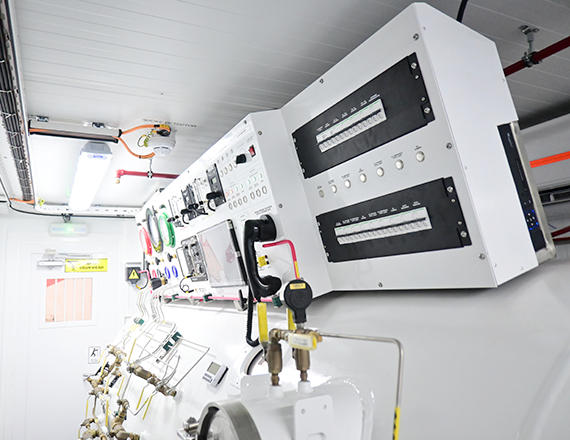

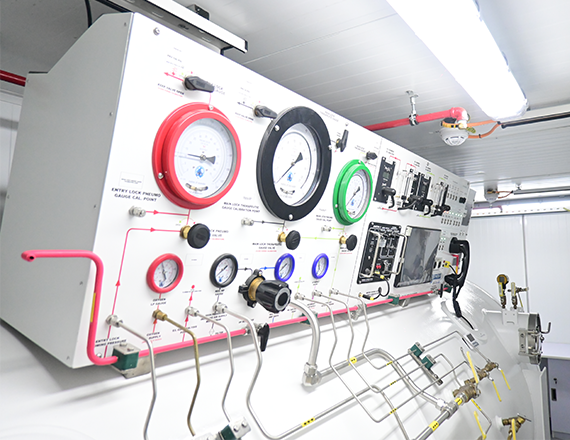

• Control Panel: Includes O2/CO2 analyzers and ambient atmosphere O2 analyzer
• UPS System: Provided for chamber with charger
• Breathing Mask: Chamber operator full-face mask with positive pressure regulator
• Emergency Communication: 10 Meter air hose with communication for emergency use
• CCTV System: Main lock and Entry lock CCTV recorder (1TB) and monitor
• Power Stabilizer: Single phase servo stabilizer, 5 kVA
• Safety Valves: Pressure relief valves for chamber protection
• Penetration Plates: Provided for safety and sealing
• Fire Safety: Fire Alarm System Connected to Ship Bridge, Fire Sprinkler System & Alarm Panel as per ABS Requirements
• Built to: ASME PVHO-1, ASME Sec. VIII Div. 1 & IMCA D023
