Technical Specifications
Product Code: SY-TWLARS-ABS-XX-XXX
• Base Frame: 1 x Skid for Mounting All LARS Equipment

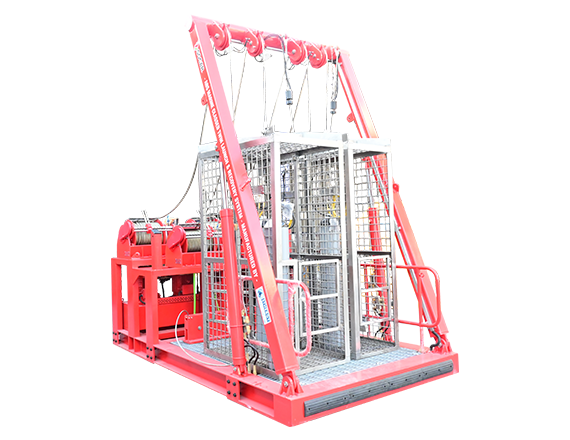

• A-Frame: 1 x Rugged 2000 kg Rated A-Frame for Luffing Diver Baskets and Guide Weights
• Hydraulic Cylinders: 2 x Hydraulic Luffing Cylinders with Stainless Steel Shafts

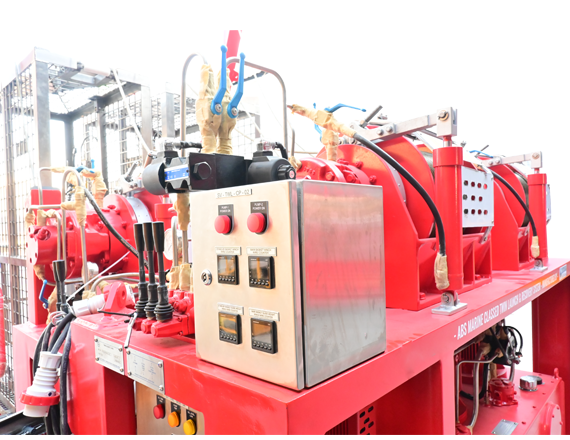

• Main Winches: 2 x Main Man-Riding Winches for Diver Basket Deployment and Recovery
• Guide Winches: 2 x Guide Wire Man-Riding Winches for Guide Weight Deployment and Recovery
• Sheave Routing: Guide Wire and Basket Ropes Routed via Sheaves on Top of the A-Frame

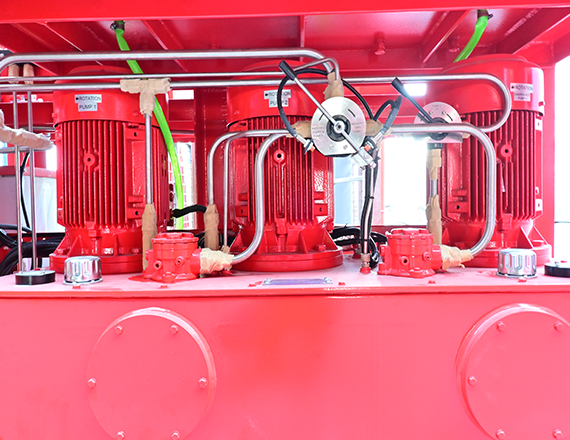

• Main HPU: 1 x Dedicated Hydraulic Power Unit & Electrical DB for A-Frame and Main Basket Winches
• Standby HPU: 1 x Dedicated Hydraulic Power Unit & Electrical DB for Standby Basket Winch
• Emergency HPU: 1 x Backup HPU with Cross-Over Capability to Replace Either Main HPU
• Main Diver Basket: 1 x Main Diver Basket Equipped with 20 m³ Onboard Gas Capacity
• Standby Diver Basket: 1 x Standby Diver Basket Equipped with 10 m³ Onboard Gas Capacity
