Technical Specifications
Product Code: SY-BC-10P-M

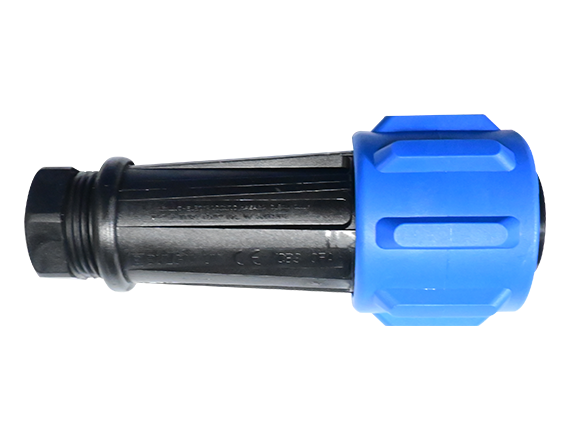

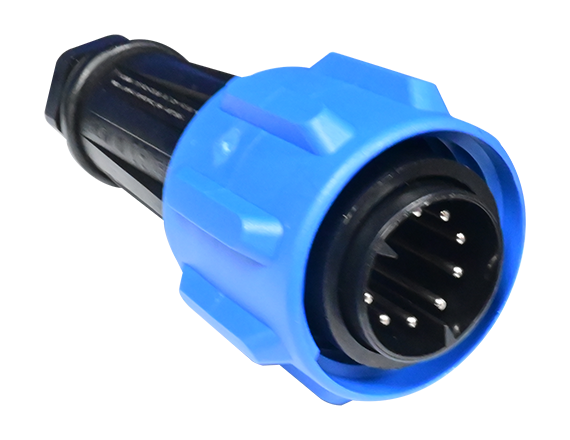

• Series: 900 Series Buccaneer
• Part Number: PXA911/10/P
• Connector Type: Circular Plug, Flex Cable Mount
• Number of Contacts: 10
• Contact Gender: Male (Pin Contacts)
• Termination Type: Screw Terminal
• Cable Entry: Straight
• Cable Diameter: Typically 7–13 mm (with optional gland support for various diameters)
• Rated Voltage: Up to 250 V AC/DC
• Rated Current: Up to 13 A (depending on wire gauge and configuration)
• Ingress Protection: IP68 (when properly mated and sealed)
• Operating Temperature: -40°C to +85°C
• Mating Interface: Compatible with PX0941/10/S and other 900 Series 10-pin socket connectors
