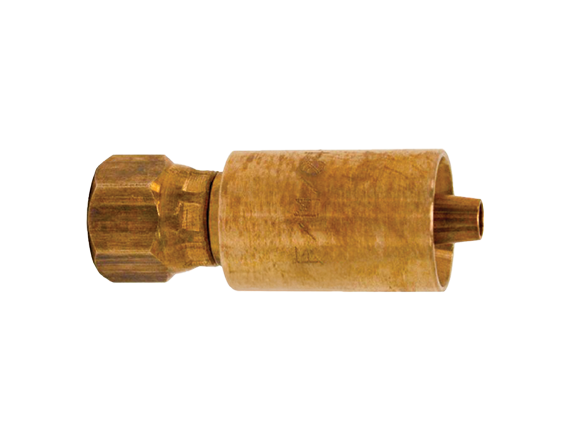

The Fibron 1/4 inch #4 JIC Hose Fitting (FLT04) is a swageable phosphor-bronze hose end designed for secure and reliable connections in diving umbilical hose systems. It is specifically engineered for use with Fibron Fibrolite and Fibroflex hose ranges, ensuring durability and leak-free performance in demanding marine environments.
Technical Specifications
Product Code: SY-FPBSF/M/04-04JIC
Applications:
#4 JIC hose fitting for 1/4 inch I.D. Fibron Fibrolite and Fibroflex umbilical hoses used in surface-supplied diving systems.
Specifications:
Hose Details:
• Body Material: Swageable Phosphor-Bronze
• Bore: 1/4 inch
• Hose Type: Fibrolite or Fibroflex
• Hose Fitting: #4 JIC
• Part Number: FLT04
• Outside Diameter: 11.50 mm
• Maximum Working Pressure: 400 PSI

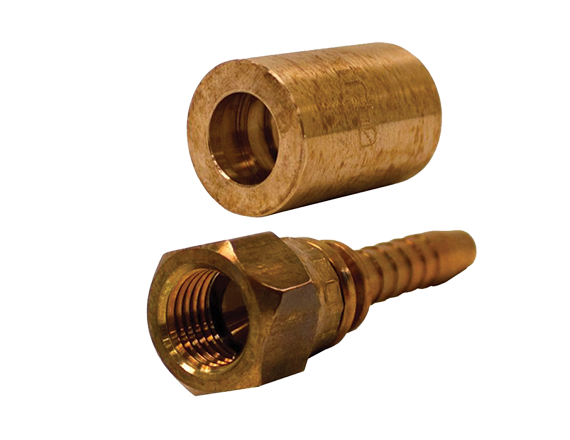

Ferrule Details:
• Pre-Crimp OD: 19.00 mm
• Post-Crimp CDD: 16.00 mm ± 0.20 mm
Note:
Crimp down diameters (CDD) are specified for Fibron phosphor-bronze hose-end fittings used across the Fibrolite and Fibroflex diving hose ranges.
