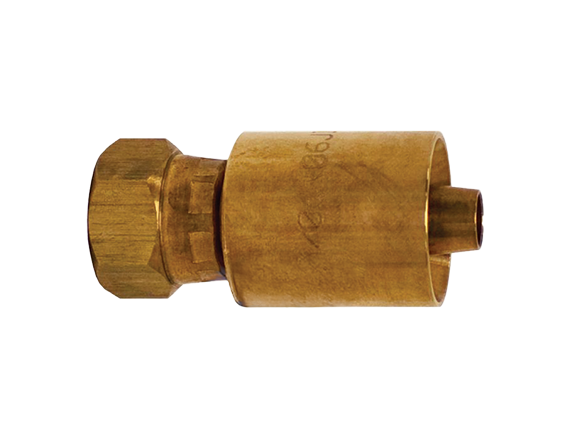

The Fibron 3/8 inch #6 JIC Hose Fitting is a swageable phosphor-bronze hose end designed for secure, high-integrity connections in diving umbilical systems. It is engineered for use with Fibron Fibrolite, Fibroline, and Fibroflex hose ranges, ensuring reliable performance in demanding offshore and marine environments.
Technical Specifications
Product Code: SY-FPBSF/M/06-06JIC
Applications:
#6 JIC hose fitting for 3/8 inch I.D. Fibron Fibrolite, Fibroline, and Fibroflex umbilical hoses used in surface-supplied diving systems.
Specifications:
Hose Details:
• Bore (ID): 3/8 inch
• Hose Type: Fibrolite, Fibroline, Fibroflex
• Hose Fitting: #6 JIC
Part Numbers & Dimensions:
• FLT06/R (Fibrolite):
– Outside Diameter: 17.50 mm
– Maximum Working Pressure: 500 PSI
– Post Swage CDD: 21.5 mm ± 0.20 mm
• FBL06 (Fibroline):
– Outside Diameter: 18.50 mm
– Maximum Working Pressure: 500 PSI
– Post Swage CDD: 23.0 mm ± 0.20 mm
• FDH06 (Fibroflex):
– Outside Diameter: 18.25 mm
– Maximum Working Pressure: 1000 PSI
– Post Swage CDD: 21.8 mm ± 0.15 mm

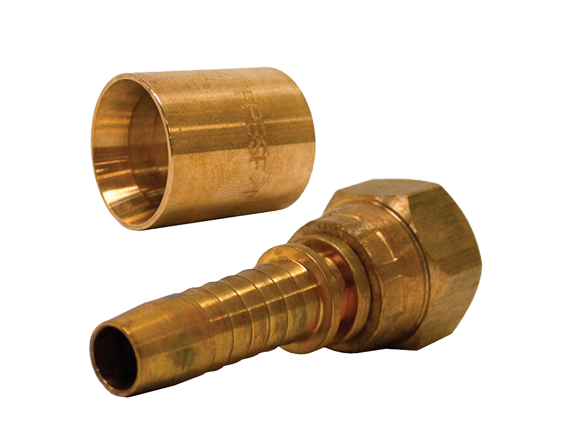

Ferrule Details:
• Body Material: Swageable Phosphor-Bronze
• Pre-Swage OD: 25.4 mm
Note:
Crimp down diameters (CDD) are specified for Fibron phosphor-bronze hose-end fittings used across the Fibrolite, Fibroline, and Fibroflex diving hose ranges.
FLT06/R features a thicker sheath than FLT06, resulting in a larger outer diameter. This configuration became the Fibrolite standard in August 2004.
