Technical Specifications
Product Code: SY-HELIOX-XX
• Gas Type: Heliox
• Cylinder Material: Seamless steel, oxygen-cleaned
• Cylinder Capacity: 50 litres
• Filling Pressure: 200 bar / 300 bar options

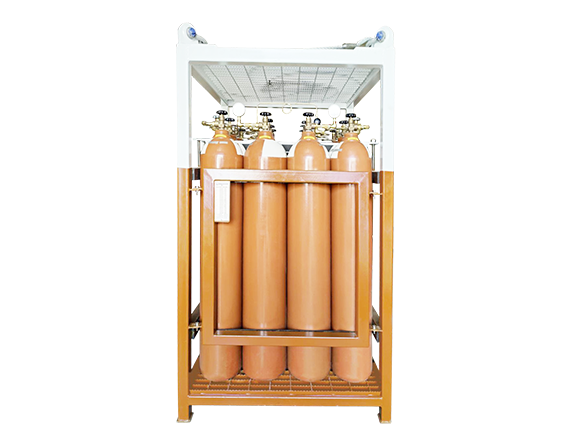

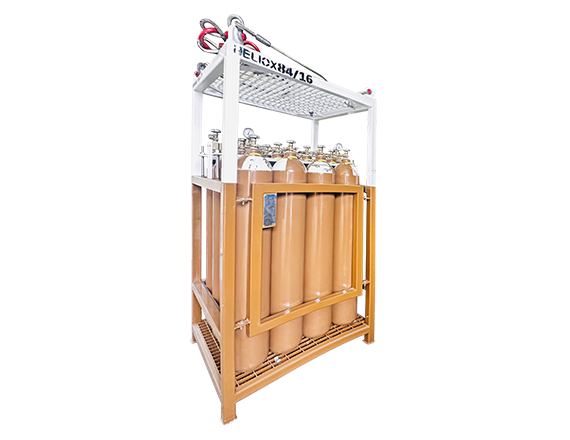

• 16-Cylinder Quad Dimensions: 1045mm (W) × 1045mm (L) × 2100mm (H)
• 64-Cylinder Quad Dimensions: 2230mm (W) × 1830mm (L) × 2490mm (H)
• 16-Cylinder Quad Weight: 1400 kg (Tare: 200 kg / Payload: 1200 kg)
• 64-Cylinder Quad Weight: 5500 kg (Tare: 1000 kg / Payload: 4500 kg)
• Valve Outlet: BS 341 No. 3 (Bullnose)
• Valve Thread: 25E
• Colour Coding: White (O₂) + Brown (He) shoulder marking
• Certification: BV / DNV
• DNV Certificate: 50 L @ 300 bar – D-GB-411; 50 L @ 200 bar – D-GB-414

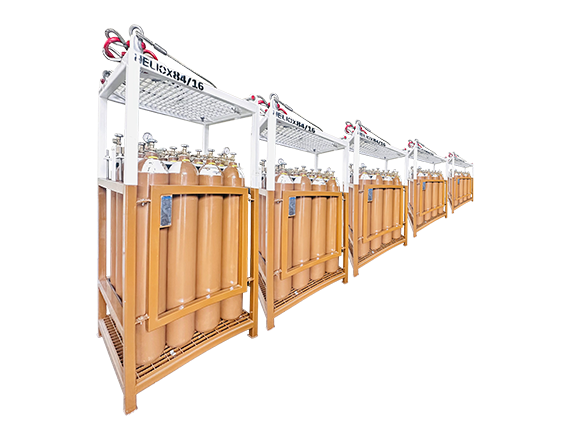

• Cylinder Rack: Available in 16-cylinder and 64-cylinder configurations
• Certification: IMCA D050, D043, D023 & D018 Compliant Certification Package
• FMEA: Provided for complete system (Optional)
• Class Witness Testing: Bureau Veritas Class Witness Testing Certification
• Documentation: Cylinder hydrotest certificates
