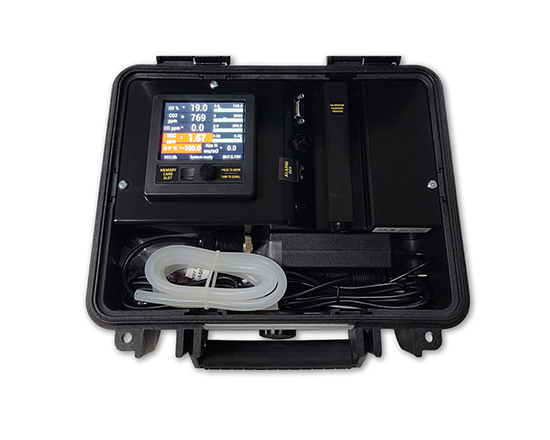

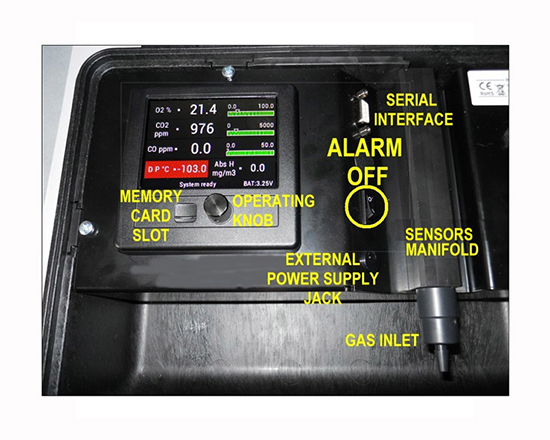

The Nuvair Multigas Color is mounted in a water- and impact-resistant case with a powder-coated aluminum instrument panel. TFT 320 x 240 dpi color display with backlight LED generates 600 nits (cd/m2) light intensity and allows for viewing of dynamic gas concentration graphs.
Technical Specifications
Product Code: SY-NUVAIR-SKU-9641-NV
• Programmable Safety: Programmable alarm thresholds
• Alarm System: Audible and visual alarms for gas detection
• Performance: Fast response, reliable and accurate measurement

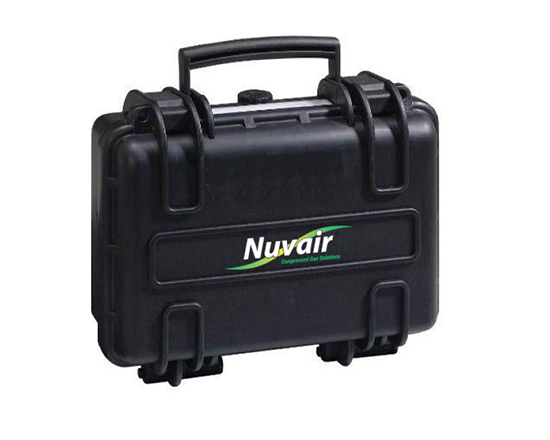

• Enclosure: Compact water- and impact-resistant housing (305 × 270 × 144 mm / 12 × 10.6 × 5.7 in)
• External Control: Optional relays for external alarm or compressor shutdown
• Firmware: Upgradeable via SD card
• Application: Designed for hyperbaric chamber use; tested up to 35 bar/ata (requires pressure-matched calibration)

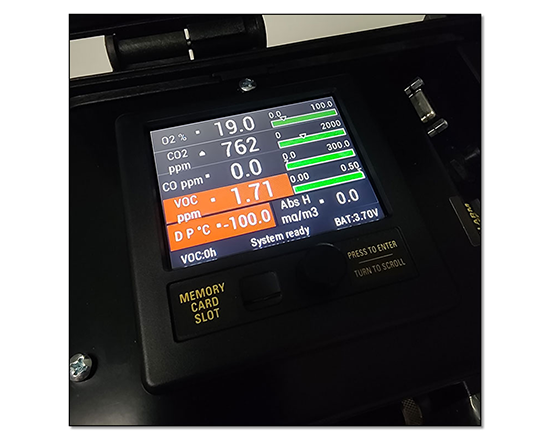

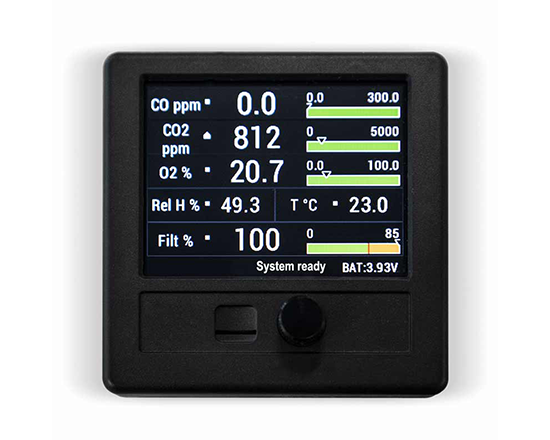

• Display: Digital color display with dynamic gas concentration graph plotting
• Gas Monitoring: O₂, CO, CO₂, H₂O (moisture), and VOC including oil vapor detection
• Control Interface: Rotary/push knob operation
• Status Monitoring: Sensor status indicators and battery voltage indicator
• Power System: User-replaceable Li-ion batteries with external car lighter socket power supply
• Connectivity: PC interface for continuous data logging + Bluetooth LE enabled
• Data Logging: Micro SD card reader/writer exporting .CSV files
• Processor: Cortex M4 microprocessor
• Performance: Conversion rate 10 ms; sampling time 100 ms per channel
