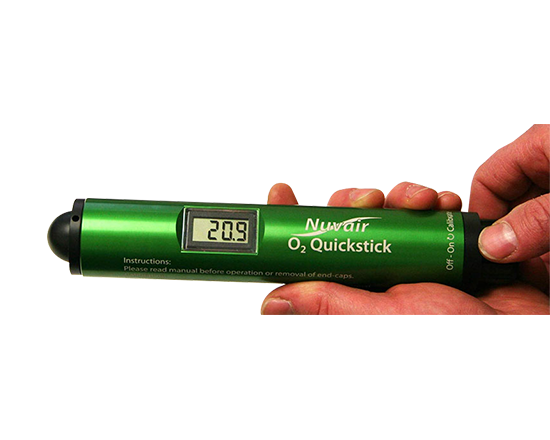

The Nuvair O2 Quickstick is the first diver-friendly oxygen analyzer available anywhere! Easy to use, effective, rugged and amazingly affordable, it is equally convenient for non-divers who need a quick and reliable oxygen analysis above water. The O2 Quickstick is designed for anyone who wants the security and convenience of having their own oxygen analyzer without having to pay a small fortune to own one.
Technical Specifications
Product Code: SY-NUVAIR-SKU-9456
• Flow Rate: 0.5–2 L/min
• Resolution: 0.1%
• Accuracy: Within ±1% of full scale at constant temperature and pressure (0–1 atm), calibrated with 100% oxygen
• Sensor Type: Electrochemical
• Expected Sensor Life: 36 months in air at 25°C (77°F) and 50% RH
• Measurement Range: 0–100% Oxygen
• Response Time: < 6 seconds (90% of final value)
• Operating Temperature: 0–40°C (32–104°F)
• Operating Humidity: 0–99% RH (non-condensing)
• Storage Temperature: 0–50°C (32–122°F)
• Power Supply: 9V alkaline battery
• Dimensions (L x W): 9" × 1.5" (23 × 4 cm)
• Weight: 21.1 oz (0.34 kg)
• Warranty: 0–12 months free replacement; 13–18 months 50% off; 19–24 months 25% off
• Replacement Sensor: Oxygen Sensor 9510
