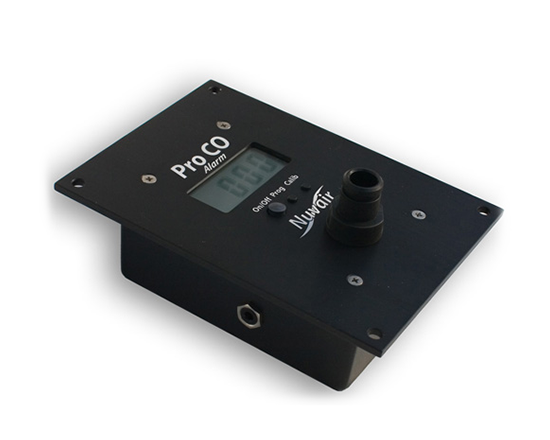

Designed for installation on a compressor control panel or other flat surface, the Nuvair Pro CO Alarm panel mount analyzer measures carbon monoxide (CO) levels in breathing gas mixtures or air. Audible and visual alarms for low and high carbon monoxide content can be set by the user. If the alarm sounds, the analog output can activate an optional relay that shuts down compressors automatically, sounds a remote alarm, or activates an emergency backup system.
The Pro CO Alarm Analyzer is also available in a shutdown version (SKU 9624.1) that shuts down systems when set points are exceeded. Additional components are required for this device.
Technical Specifications
Product Code: SY-NUVAIR-SKU-9624
• Flow Rate 0.5–1 L/min
• Range 0–50 ppm CO
• Resolution 1 ppm
• Accuracy ±5%
• Repeatability < ±5%
• Sensor Type Electrochemical CO Sensor
• Expected Sensor Life >24 Months (From Date of Manufacture)
• Alarms Two User-Programmable Audible & Visual Alarms
• Response Time < 50 Seconds (Full Temperature Range)
• Operating Temperature 14°F to 122°F (–10°C to 50°C) Continuous / –4°F to 122°F (–20°C to 50°C) Intermittent
• Operating Humidity 15–90% Continuous / 0–99% Intermittent (Non-Condensing)
• Storage Temperature 14°F to 140°F (–10°C to 60°C)
• Power Options 9V Battery / Rechargeable Lithium Battery / 110–220V Wall Plug-In / 12V DIN Rail
• Dimensions 4 × 2 × 5.5 in (10.2 × 5 × 14 cm)
• Weight 9 oz (0.3 kg)
• Replacement Sensor SKU 9501
• Warranty 12 Months
