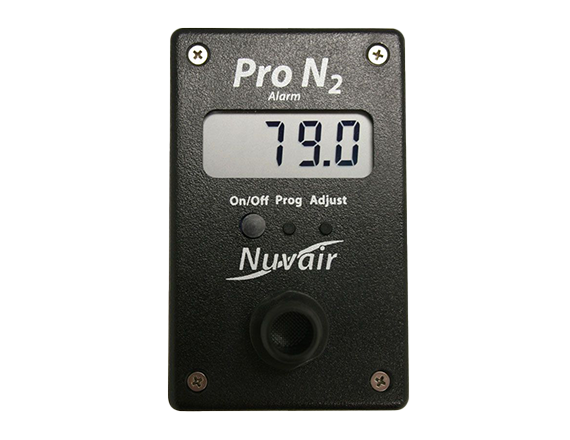

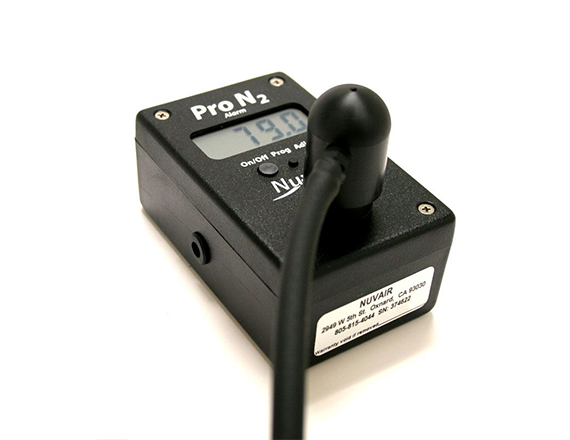

The Nuvair Pro N2 Alarm analyzer measures nitrogen (N2) levels in gases in the range of 0.0 to 100% by calculating the lack of oxygen (O2) in mixed gases. Other gases like CO, CO2, H2, Ar or He do not affect the sensor but are added to the total nitrogen percentage as they are not O2. This handheld version is portable, easy to use, accurate and stable. The Nuvair Pro N2 Alarm is a suitable replacement for the out of production Teledyne AN300 Nitrogen Analyzer.
The Pro N2 Alarm is designed to verify N2 concentrations in stored gas cylinders, enclosed spaces and with compressors pumping nitrox. When used in breathing gas applications, redundant analyzers must be used for verification. For example, one analyzer must be used to monitor nitrogen during breathing gas production and a second independent analyzer must be used to verify the nitrogen content of the stored breathing gas prior to diver use.
The Pro N2 Alarm comes with two user-programmable audible and visual alarms for low and high nitrogen content. If the alarm sounds, the analog output can activate an optional relay that can automatically shut down compressors, sound a remote alarm, or activate an emergency backup system. Price varies according to power options.
WARNING: Never expose gas sensors to pressure or you may cause damage and/or false readings. Damaged sensors will not provide accurate gas analysis. Most gas analyzers can be used to analyze a regulated gas sample flow, the contents of a gas cylinder, or the flow from a regulator. The flow rate of gas must equal 1-5 L/min. To produce this flow, a Flow Restrictor and Regulator may be required. A faulty Flow Restrictor can lead to a false analyzer reading. Flow Restrictors should be regularly tested with a Flow Meter. Inaccurate gas analysis can lead to serious personal injury or death.
Technical Specifications
Product Code: SY-NUVAIR-SKU-9613
• Flow Rate 0.5–3 L/min
• Resolution 0.1% of Volume
• Accuracy ±2% Over Full Scale
• Sensor Type Galvanic Cell
• Expected Sensor Life 48 Months
• Range 0.0–100.0% Nitrogen in an Oxygen/Nitrogen Gas Mix
• Alarms User-Adjustable Minimum & Maximum Audible and Visual Alarms
• Response Time <15 Seconds for 90% Response
• Operating Temperature 41°F to 104°F (5°C to 40°C)
• Operating Humidity 0–95% RH (Non-Condensing)
• Power Options 9V Battery / 800mAh Rechargeable Lithium Battery / 110–220V Wall Plug-In (International)
• Module Options FAILSAFE / SMART START
• Dimensions (L × W × H) 2.5 × 1.75 × 4.25 in (6.4 × 4.5 × 10.8 cm)
• Weight 7.8 oz (221 g)
• Warranty 12 Months
