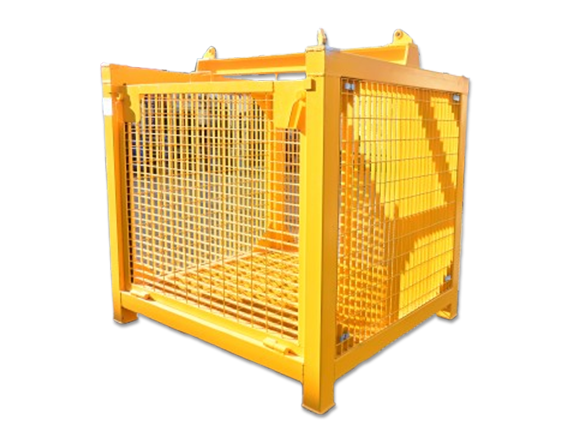

Technical Specifications
Product Code: SDES-TB-001
• Certification: Constructed in accordance with DNV 2.7-3
• Internal Dimensions (L × W × H): 1400 × 1210 × 1220 mm
• Tare Weight: 600 kg
• Payload Capacity: 900 kg
• Maximum Gross Weight: 1500 kg
• Lifting Height: 4660 mm
• Sling Angle: 45°
• Lifting Arrangement: Bail Arm Spreader Beam with 2-Part Steel Ferrule Rigging
• Construction: Heavy-Duty Offshore Steel with Marine-Grade Protective Coating
• Lifting Padeyes: Integrated Padeyes for Safe Loading & Lifting Operations
• Side Panels: Grated Panels & Door

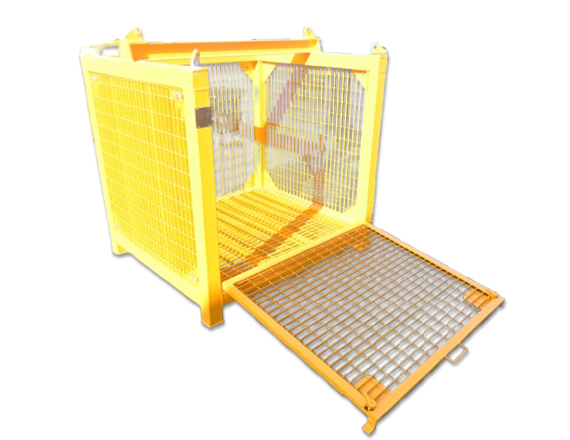

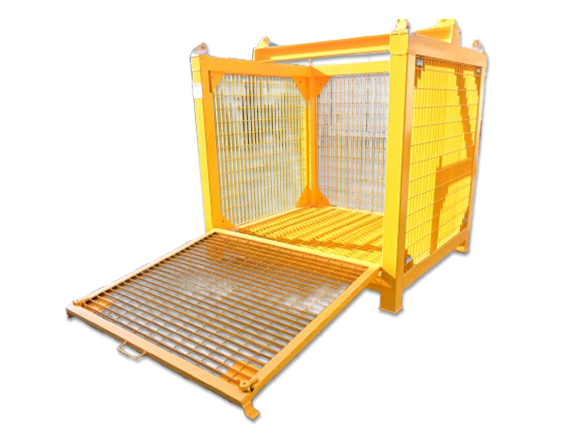

• Door Type: Drop-Down Front Door
• Door Latches: Diver & ROV Friendly Design
• Application: Deployment & Recovery of Tools, Equipment and Small Payloads for Diving & ROV Operations
• Inspection Witnessed By: Bureau Veritas
