Technical Specifications

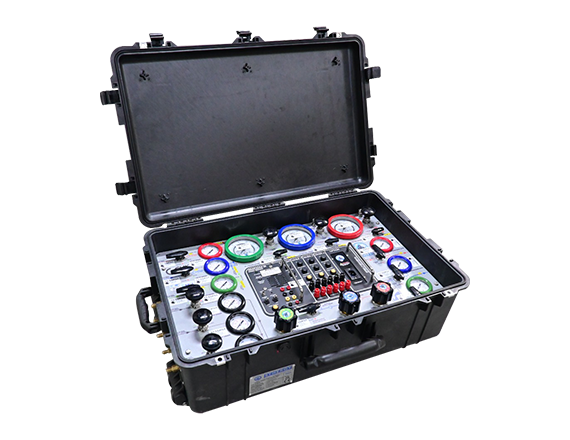

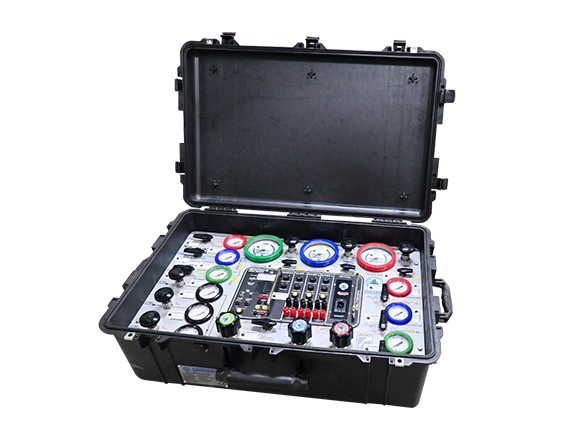

Product Code: SY-3DAP-D040-R-SF / BF
• High Pressure Supply: 3 independent HP supplies, one per diver
• Low Pressure Supply: 3 independent LP supplies, one per diver
• Communication System: Amron 2820A-11 three diver radio with AC/DC power supply
• Regulator Output: 1 x per diver, suitable for breathing air, Inlet: 6000 psi, Outlet: 400 psi
• Pressure Gauges: 0–250 psi on regulated diver supply line, 100 psi on pneumo gauges
• Fittings – Left Side: All HP and LP air inlet fittings
• Fittings – Right Side: Diver air supply and pneumo fittings
• Fittings – Rear Panel: All inlets and outlets can be provided from behind the panel
• Calibration: Inbuilt calibration points for pneumo gauges
• Compliance: IMCA D040 & D018 compliant certification package
• FMEA: Complete system Failure Modes and Effects Analysis (Optional)
• Class Certification: Bureau Veritas class witness testing certification for the entire system
