Technical Specifications

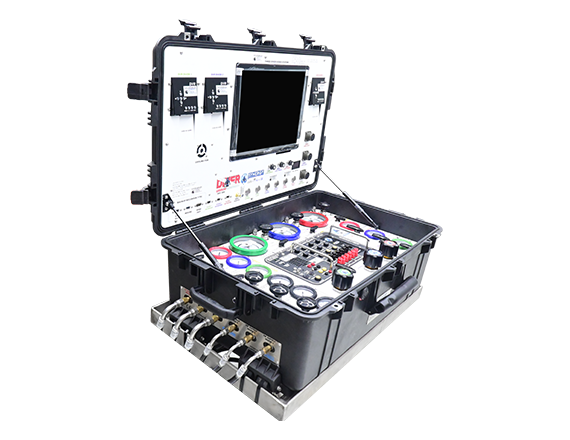

Product Code: SY-3DAP-D040-R-3DV-SF / BF
• HP Supply: 3 independent high-pressure supplies, one per diver
• LP Supply: 3 independent low-pressure supplies, one per diver
• Diver Radio: Amron 2830A-11 Three Diver Radio with AC/DC power supply
• HP Regulator: 1 per diver, suitable for breathing air (Inlet: 6000 psi, Outlet: 400 psi)
• Relief Valve: 0–250 psi on regulated diver supply line, 100 psi on pneumo gauges
• All Connection: Left side – HP/LP air inlet connection; Right side – diver air supply and pneumo connection
• Panel Access: All inlets and outlets provided from behind the panel
• Calibration: Inbuilt calibration points for pneumo gauges (for Diver 1, Diver 2 and Diver 3)
• CCTV System: 15.5” TFT screen with split image for Diver 1 / Diver 2 / Diver 3
• Control Interface: All touch-button controls with backlight for low visibility; video and light control
• Video Recording: 1 TB hard drive for recording all diver videos simultaneously
• Backup Storage: 1 TB backup hard drive for simultaneous video recording
• Compliance: IMCA D040 & D018 Compliant Certification Package
• Safety Analysis: FMEA for complete system (Optional)
• Certification: Bureau Veritas class witness testing certification for panel
