Technical Specifications
Product Code: SY-2DAP-DO40-R-SF
• HP Supply: One independent high-pressure (HP) inlet connections provided for each diver
• LP Supply: One common low-pressure (LP) inlet connection provided for each diver
• Communication: Amron 2820A-11 two-diver communication radio with AC/DC power supply
• Diver Air Supply: One air supply outlet per diver
• Diver Pneumo Supply: One pneumo supply outlet per diver
• Pressure Monitoring: 0–250 psi gauges on regulated diver supply lines and 100 psi pneumo gauges
• Pressure Regulator: One per diver for HP inlet with 6000 psi upto inlet and 400 psi outlet

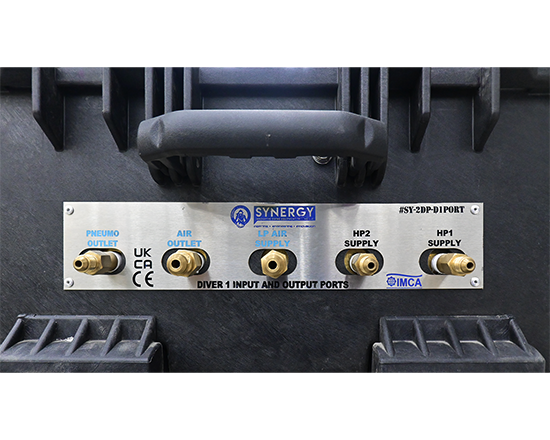

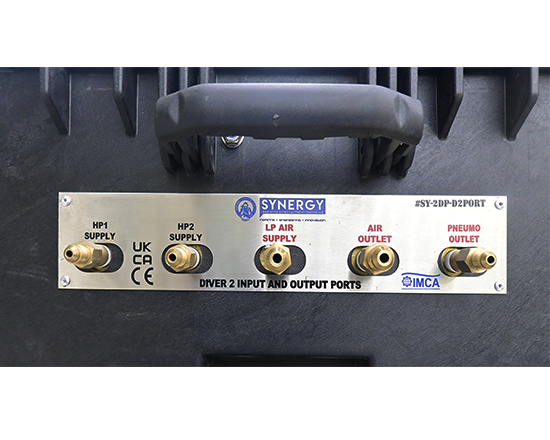

• Panel Layout: Left side dedicated for HP and LP air inlet fittings; right side dedicated for diver air supply and pneumo fittings
• Connections: All inlet and outlet fittings conveniently accessible from the side of the panel
• Calibration: Integrated calibration points provided for pneumo gauges
• CCTV Monitoring: CCTV system provided for both Diver 1 and Diver 2 monitoring
• Display: 2 X 11” TFT monitor with screen view for Diver 1 and Diver 2 video feeds
• Controls: Backlit touch-button controls for video and lighting functions, designed for low-visibility operations
• Recording System: 32 GB SD card for simultaneous recording of diver video feeds
• Backup Storage: 1 TB backup hard drive for both diver 1 & 2 for simultaneous recording and data redundancy
• Compliance: Supplied with IMCA D040 & D018 compliant certification package
• Optional: FMEA available for complete system reliability analysis
• Certification: Bureau Veritas Class Witness Testing Certification
