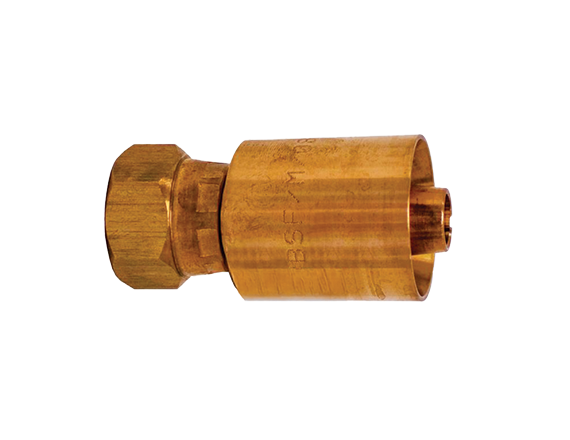

The Fibron 1/2 inch #8 JIC Hose Fitting (FLT08) is a swageable phosphor-bronze hose end designed to provide secure, high-integrity connections for diving umbilical hose systems. It is engineered specifically for Fibron Fibrolite hoses, ensuring reliable performance in demanding marine and offshore environments.
Technical Specifications
Product Code: SY-FPBSF/T/08-08JIC
Applications:
#8 JIC hose fitting for 1/2 inch I.D. Fibron Fibrolite umbilical hoses used in surface-supplied diving systems.
Specifications:
Hose Details:
• Body Material: Swageable Phosphor-Bronze
• Bore: 1/2 inch
• Hose Type: Fibrolite
• Hose Fitting: #8 JIC
• Part Number: FLT08
• Outside Diameter: 18.50 mm
• Maximum Working Pressure: 400 PSI

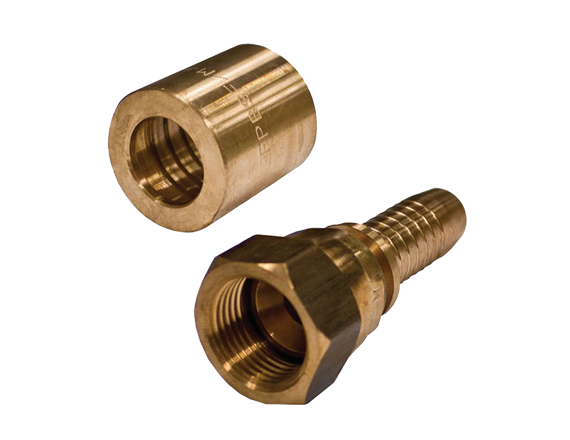

Ferrule Details:
• Pre-Crimp OD: 25.40 mm
• Post-Crimp CDD: 22.00 mm ± 0.20 mm
Note:
Crimp down diameters (CDD) are specified for Fibron phosphor-bronze hose-end fittings used across the Fibrolite range of diving hoses.
