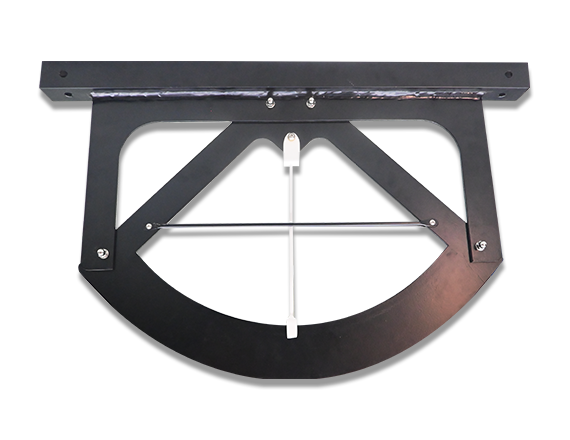

The Synergy Chain Inclinometer was developed for a client to serve as a subsea inspection and set-up aid on the anchor points used to secure buoys to the sea bed ensuring equal tie down angles is achieved. Its light weight easy to use and non-corrosive construction provides a diver with the effective tool for multiple usage. Underwater chain inclinometers are designed for monitoring the inclination or angle of submerged chains, such as those used in single point moorings, buoy anchors, or risers. They are critical in subsea construction, offshore mooring inspections, and oceanographic research, helping operators verify proper chain tension, alignment, and structural stability.
Technical Specifications
Product Code: SY-INCM-002
• Measurement Range: 0° to 100°
• Scale Increments: 1° intervals
• Major Graduations: 20°, 30°, 45°, 60°, 75°, 90°, and 100°
• Mechanism Type: Gravity-actuated mechanical pendulum/pointer
• Frame Material: Heavy-duty machined composite or anodized aluminum (black)
• Scale Face: High-visibility UV-resistant yellow plate with black markings
• Mounting Base: Integrated straight-edge datum bar with pre-drilled alignment holes
• Environmental Rating: Suitable for marine, offshore, and outdoor deployment

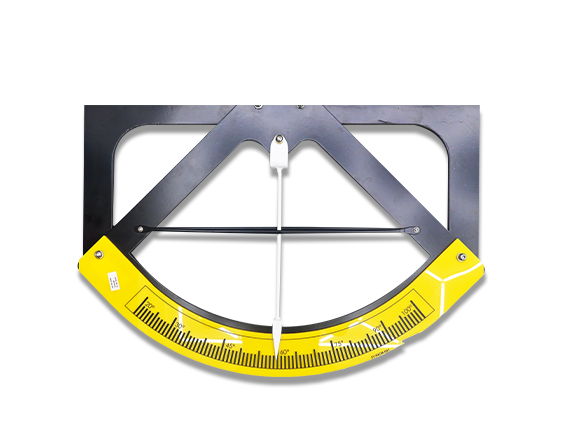

• Display: Bright yellow arc scale with high-contrast white pointer for enhanced visibility
• Construction: Impact-resistant design for harsh industrial and offshore environments
• Operation: Fully mechanical, gravity-operated design requiring no external power source
• Reference Surface: Precision datum bar for accurate alignment against plates, pipes, beams, and structural frames
• Applications: Marine and offshore engineering, commercial diving support, steel fabrication, pipe fitting, and structural construction
