Technical Specifications
Product Code: SY-DS-PH

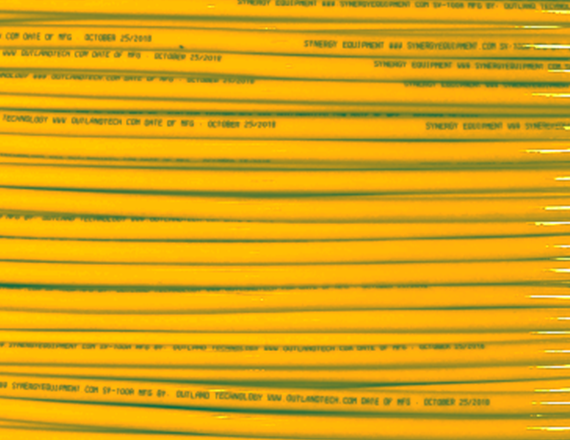

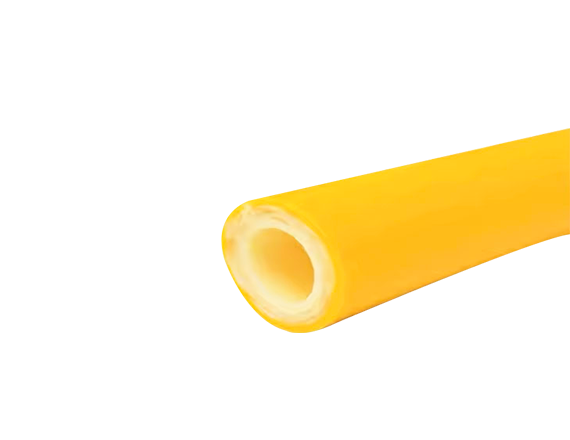

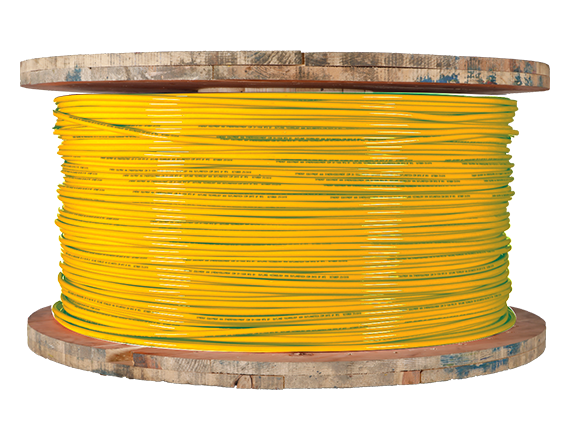

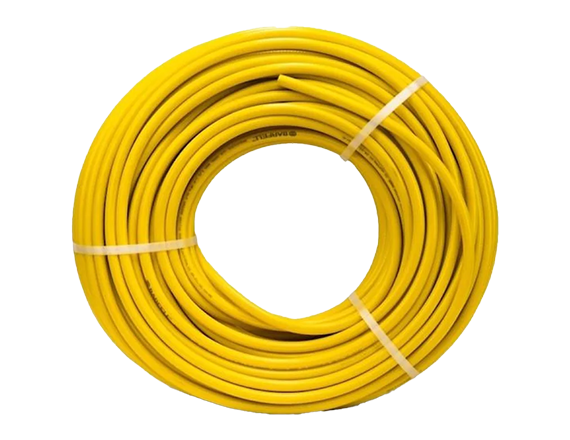

• Hose Type: Dive Safe Pneumo Hose
• Standard: CE EN250
• Material: PVC and NBR
• Nominal Bore: 1/4" (6.3 mm)
• Outside Diameter: 11.5 mm
• Maximum Working Pressure: 435 psi / 30 bar
• Minimum Burst Pressure: 1,740 psi / 120 bar
• Operating Temperature: -20°C to +80°C
• Minimum Bend Radius (Static): 75 mm
• Minimum Bend Radius (Dynamic): 115 mm
• Tensile Rating: 100 kg
• Weight in Air: 82 kg/km
• Weight in Seawater: 25 kg/km
• Color: White Inner Core / Yellow Outer Cover
• Compatible Fittings: Cortland-FPBSF/M/M04-04 JIC
