Technical Specifications
Product Code: SY-33HB-AH

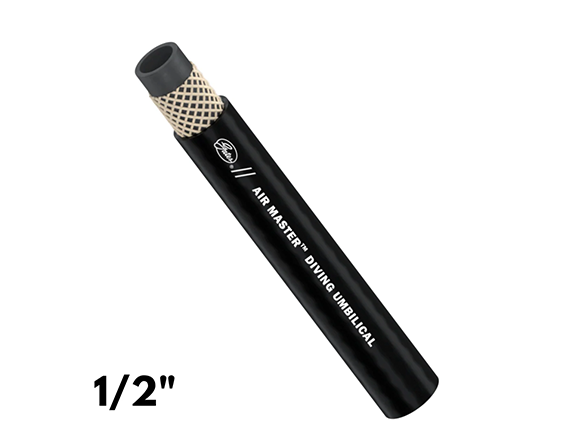

• Hose Type: Divers Air Hose
• Model: Gates® 33HB (Specification 3333)
• Application: Commercial Diving Air & Mixed Gas Supply
• Recommended Media: Air, Oxygen, Helium and Nitrogen Gas Mixtures
• Tube Material: Type C Nitrile (Black)
• Reinforcement: Braided High Tensile Synthetic Textile Cord
• Cover Material: Type A Neoprene (Black)
• Nominal Bore: 3/8" (9.5 mm) & 1/2" (12.7 mm)
• Outside Diameter: 3/4" (19.1 mm) – 0.94" (23.9 mm)
• Maximum Working Pressure: 1,125 psi / 77.6 bar (3/8")
• Maximum Working Pressure: 1,000 psi / 69 bar (1/2")
• Operating Temperature: -40°C to +49°C
• Minimum Bend Radius: 4" (102 mm) – 5" (127 mm)
• Standard: Meets MIL-H-2815G Section 3.12.2 Off-Gassing Requirements
• Couplings: Corrosion Resistant Diving Hose Couplings
• Branding: Continuous Ink Print Identification
• Color: Black Tube / Black Neoprene Cover
• Available Sizes: 3/8" and 1/2"
• Applications: Surface Supplied Diving Systems, Offshore Diving Operations, DSV & Diving Support Equipment
